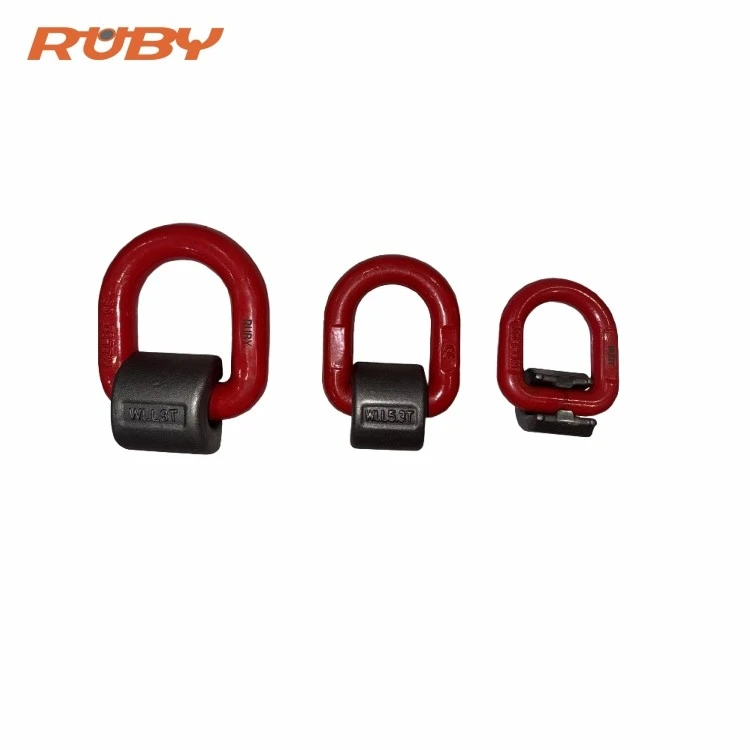

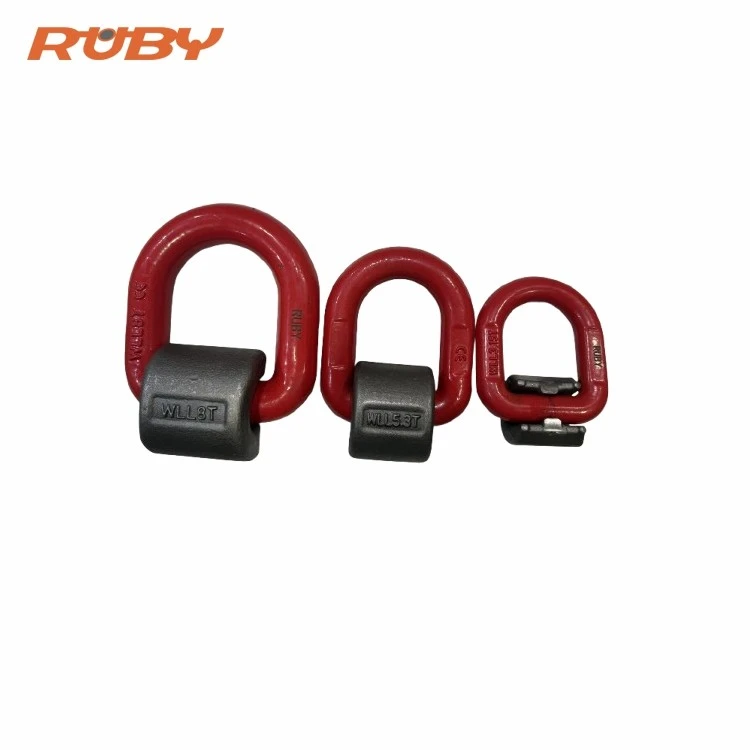

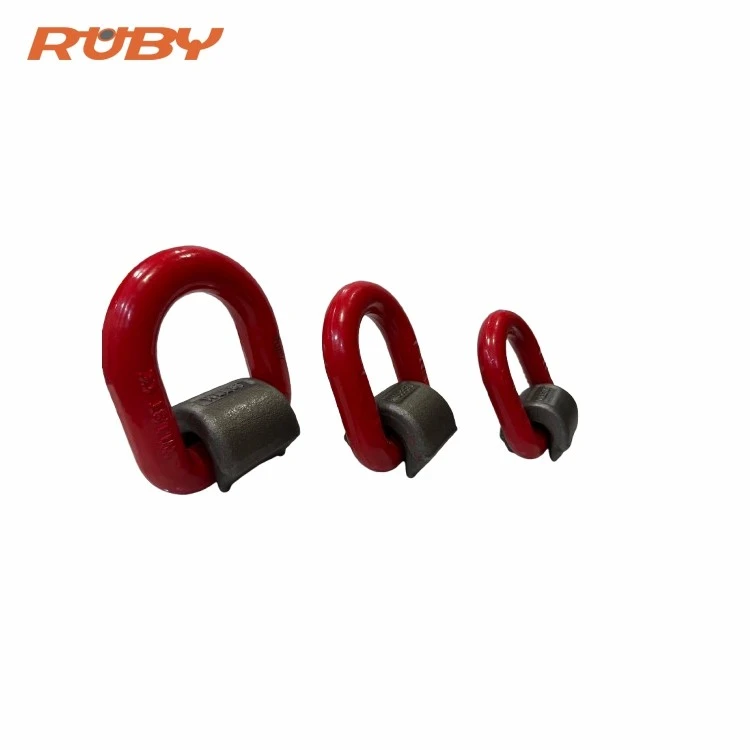

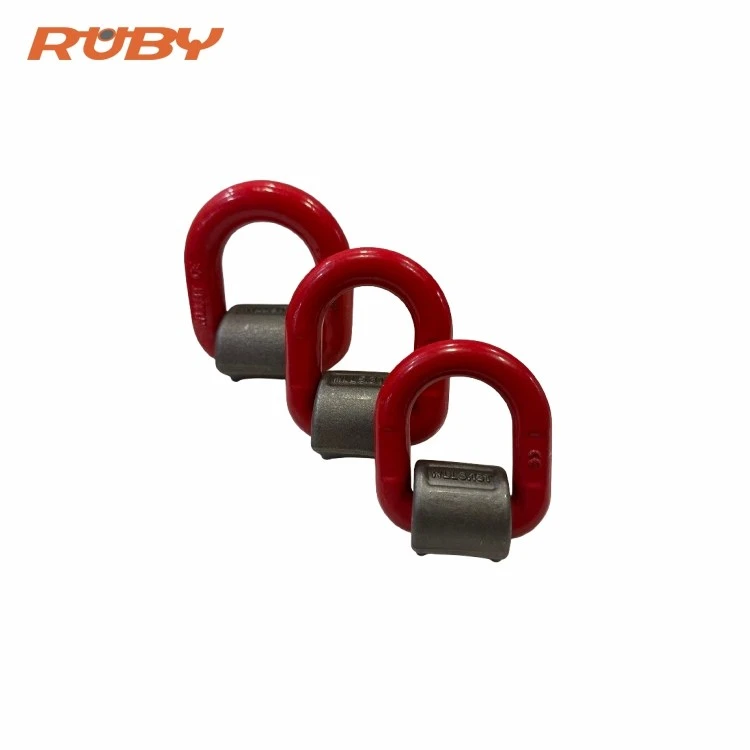

G80 WELD ON D RING
This G80 weld on D ring is made of G80 alloy steel and has high strength and excellent load-bearing capacity to ensure safe and reliable lifting operations.
The weldable design facilitates welding and enables a strong and durable connection with metal structures.
G80 weld on D ring is easy to adjust. Installation is quick and simple.
Specification
| Product code | WLL | BL | Dimensions | N.W. | ||||
|---|---|---|---|---|---|---|---|---|
| T | T | A | B | C | D | M | kg | |
| mm | ||||||||
| RP008-1T | 1.12 | 4.48 | 41 | 80 | 35 | 13 | 37 | 0.47 |
| RP008-2T | 2 | 8 | 42 | 90 | 41 | 14 | 38 | 0.51 |
| RP008-3T | 3.15 | 12.6 | 46 | 96 | 42 | 17 | 44 | 0.69 |
| RP008-5T | 5.3 | 21.2 | 55 | 121 | 48 | 22 | 50 | 1.46 |
| RP008-8T | 8 | 32 | 70 | 144 | 62 | 26.5 | 66 | 2.52 |
| RP008-10T | 10 | 40 | 85 | 168 | 78 | 28 | 78 | 3.59 |
| RP008-15T | 15 | 60 | 97 | 187 | 86 | 34 | 90 | 5.79 |
Product Details
- Safety factor: 4:1
- Forged G80 alloy steel, High-strength forging in one piece
- Welded fixing is more stable
- Easy to install, available in multiple sizes and specifications
- D type provides uniform stress distribution and resists tensile deformation
Color, stamping, packing all can be specially customized
Applications
Versatile and adaptable to various scenarios: (trailers, flatbed trucks, trucks, off-road modifications, construction machinery, cargo rigging, lifting slings, and ship mooring...)
