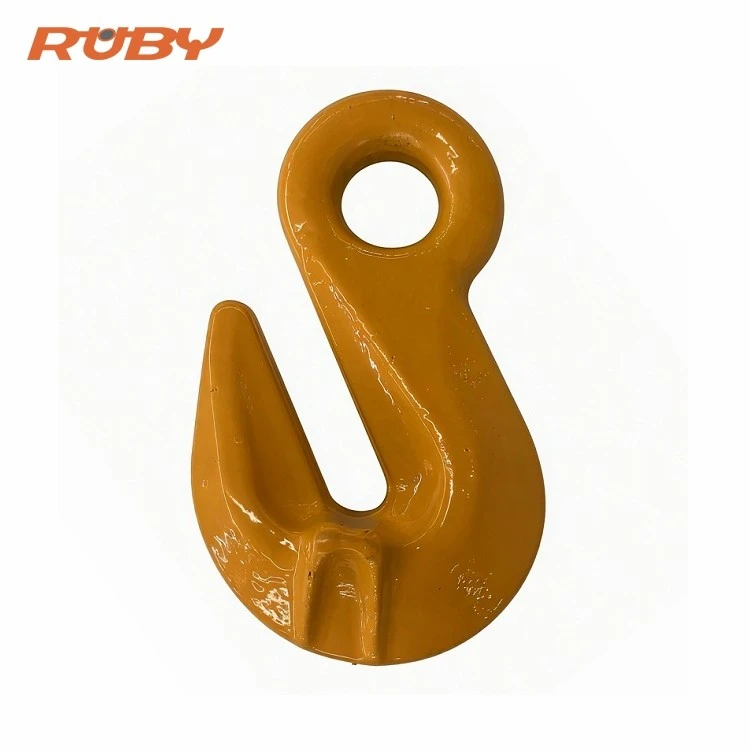

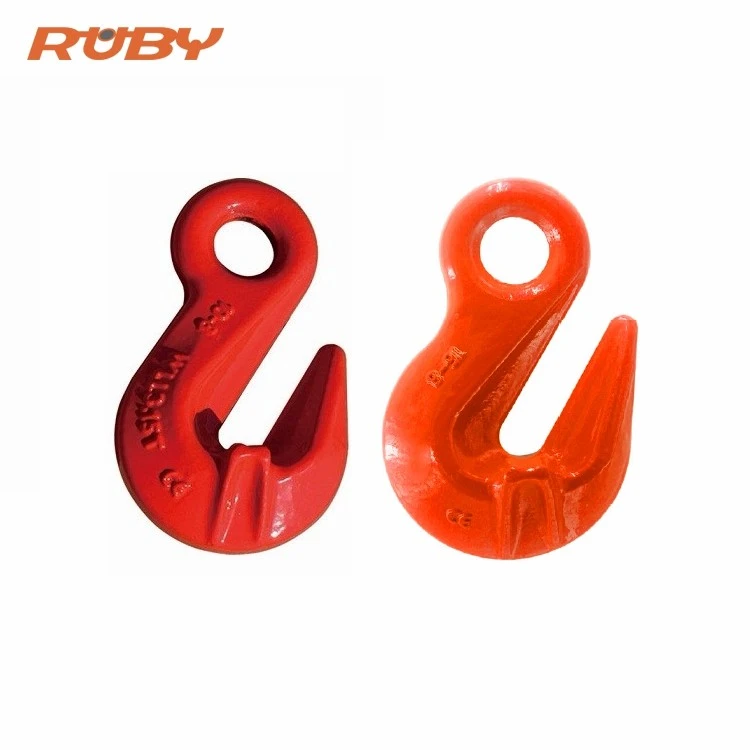

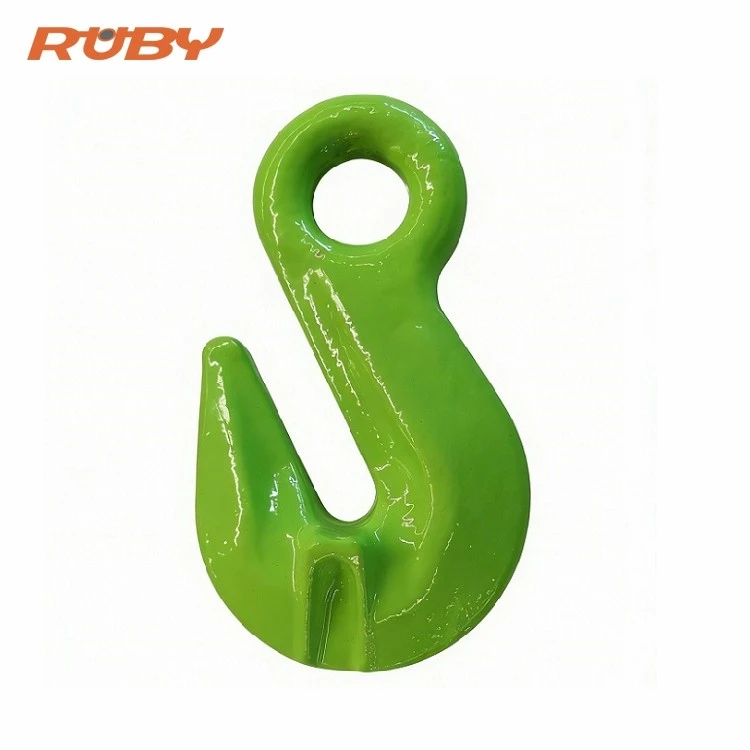

Eye Grab Hook

Designed with a special narrow throat, Rudy eye grab hook is used to shorten a chain leg flexibly on chain slings or hold a length of chain in lifting applications.
The narrow throat engages between chain links for quick, non-slip operation.
Equipped with supporting lugs, the eye garb hook ensures no reduction of the working load limit.

Send Inquiry

Specification

PRODUCT CODE	CHAIN SIZES	W.L.L	M.B.L	WEIGHT	DIMENSION mm					PACK
	mm	tonne	tonne	Kg	H±2	d±1	D±1	W±1.5	E±1	PCs
85SGH6-8E	6	1.12	4.48	0.14	75.3	13.5	13	45	8	100
85SGH78-8E	8	2	8	0.245	91.2	18	16	63	10.8	80
85SGH10-8E	10	3.15	12.6	0.65	122	2	20	79	13	30
85SGH13-8E	13	5.3	21.2	1.39	158	26	25	100	16.5	15
85SGH16-8E	16	8	32	2.2	169	30.5	28.5	122	20	10
85SGH20-8E	20	12.5	50	4.6	219	37.5	36	150.5	25	4
85SGH22-8E	22	15	60	8.2	259	44	42	169	28	2
85SGH26-8E	26	21.2	84.8	9.8	298	44.0	45	175	30	2
85SGH32-8E	32	31.5	126	19.4	361	57	57	189	38	1
