Name: Swivel Self Locking Hook - China Swivel Self Locking Hook Manufacturers Suppliers Factory - Ruby
Brand: Ruby
SKU: 303598337

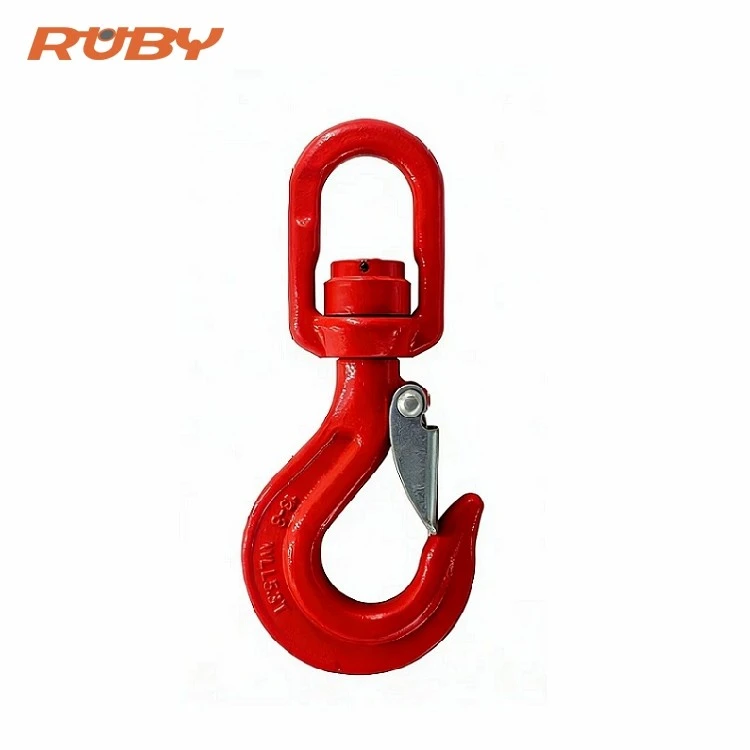

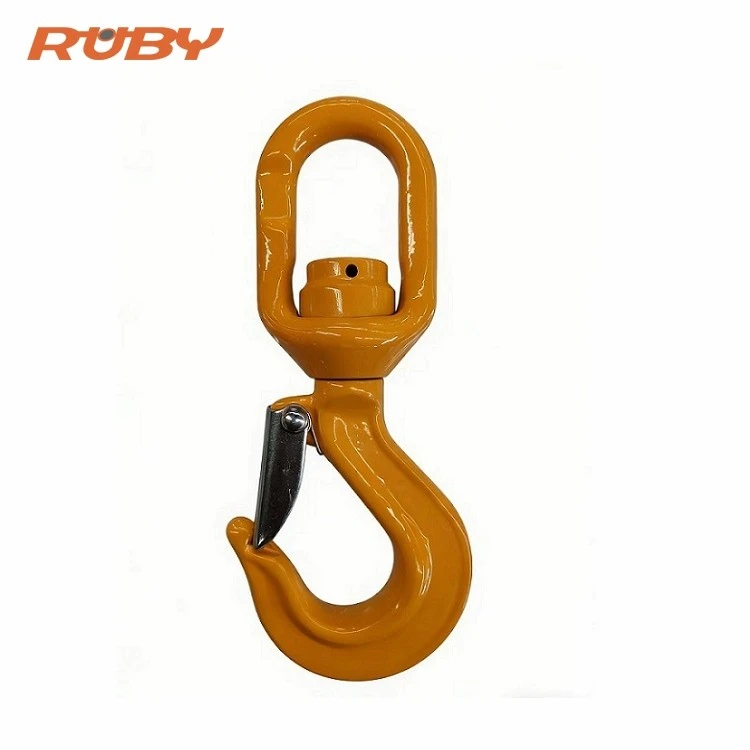

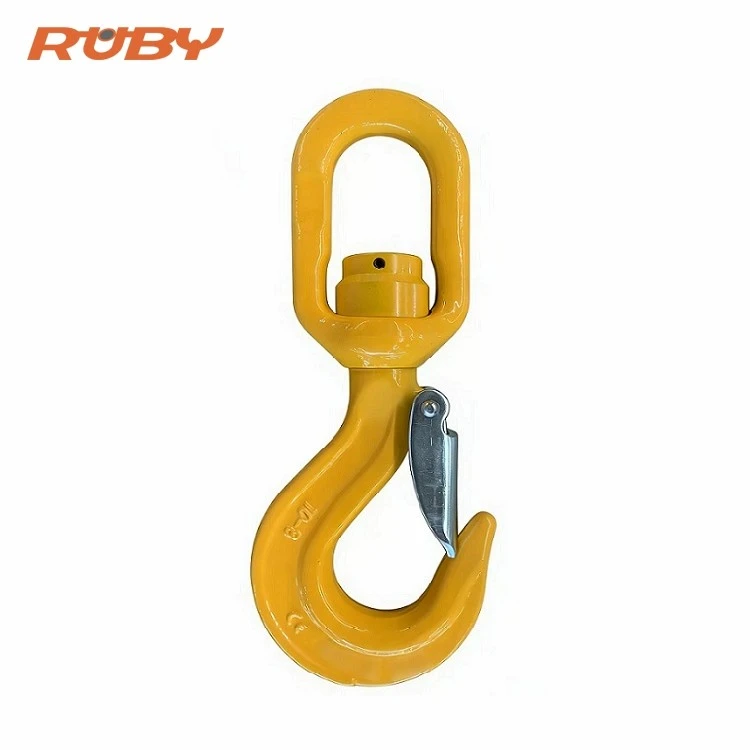

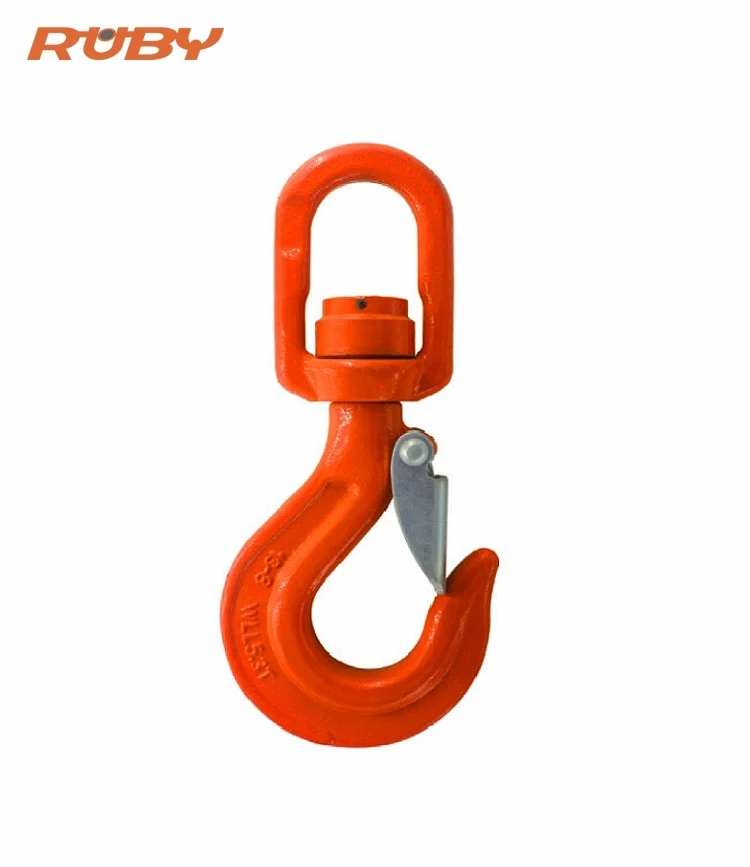

Swivel Self Locking Hook

Unlike traditional self locking hooks, the RUBY swivel self locking hook is a heavy-duty lifting hook that locks securely and rotates 360 degrees smoothly under load because of its ball bearings design.
Positive lock latch is self-locking by a spring when hook is loaded.After unloading, the lock can be unlocked by manually operating the latch trigger.
Make sure that the latch is properly closed before lifting.

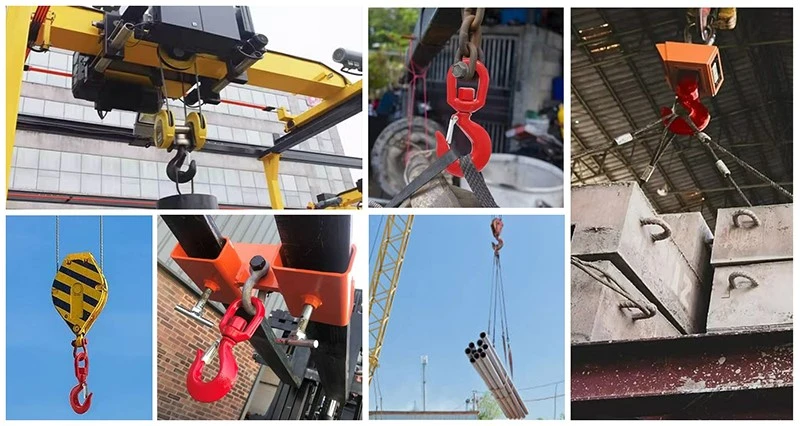

Due to their safety and efficiency, these hooks are commonly used in overhead lifting, rigging and material handling applications.

Send Inquiry

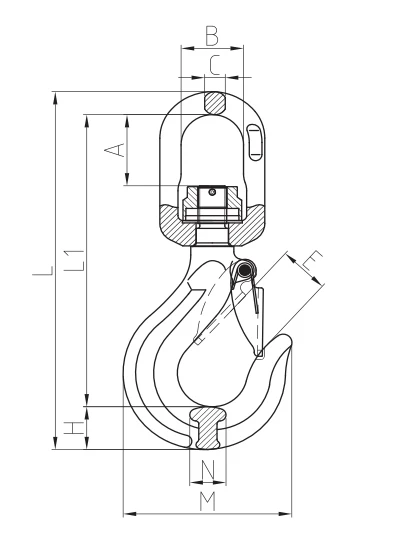

Specification

PRODUCT CODE	Weight (kg)	W.L.L (T)	B.L (T)	A	B	E	M	L1	L	N	C	H
788-6-8	0.65	1.12	4.48	32.5±1	32.5±1	24±1.5	69±2	138±2	168±2	16±1	11±4	19±0.5
788-7/8-8	0.95	2	8	36±1	36±1	28.5±1.5	88±2	170±2	208±2	20±1	13±1	23±0.8
788-10-8	1.71	3.15	12.6	53±2	42±1	31±1.5	105±2	207±3	254±3	23±1	15.5±1	29.5±1
788-13-8	3.13	5.3	21.2	63.8±2	50±1.5	40±2	135±2	248±3	305±3	32±1.5	17±1.5	38±1
788-16-8	5.44	8	32	68±3	61±1.5	45±2	161±2	295±3	367±3	37.5±1.5	21.5±1.5	45±1
788-18/20-8	9.5	12.5	50	90.5±3	74±2	56±2	194±3	356±4	434±4	49±2	25±2	50±2
788-18/22-8	16	15	60	100.5±3	97±2	70±2.5	224±3	441±4	536±4	55±2	33±2	62±2
