Name: China Screw Pin Shackle Manufacturers Suppliers Factory - Custom Screw Pin Shackle Wholesale - Ruby
Brand: Ruby
SKU: 303614508

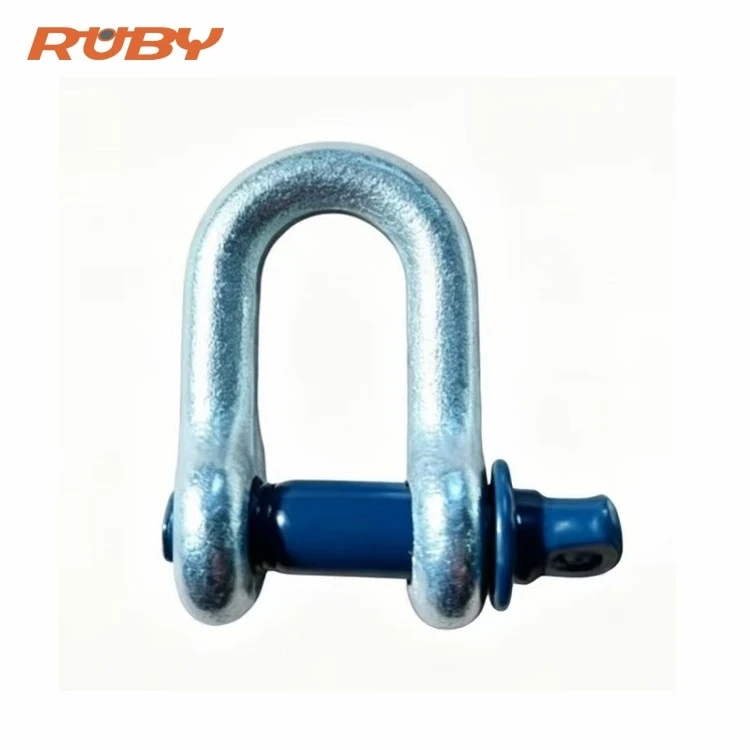

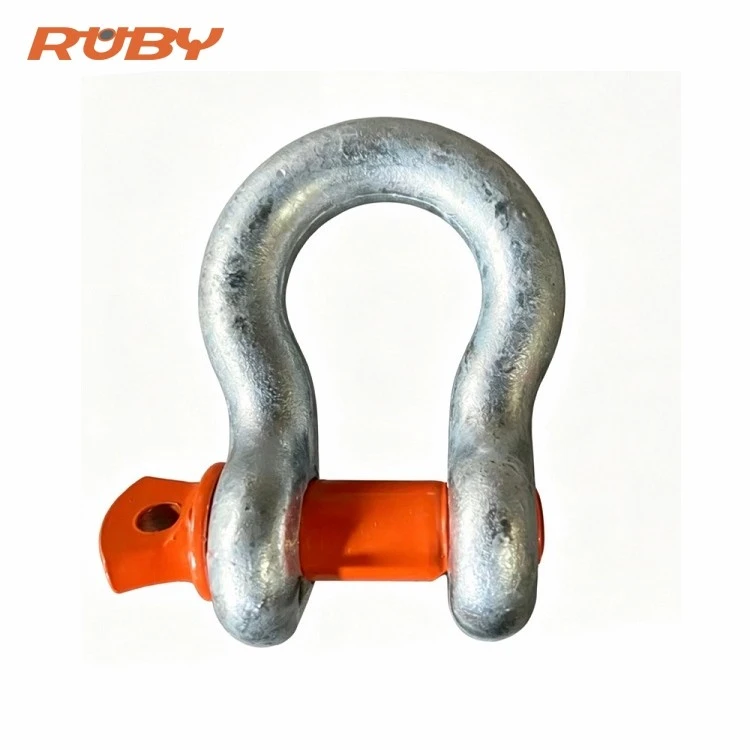

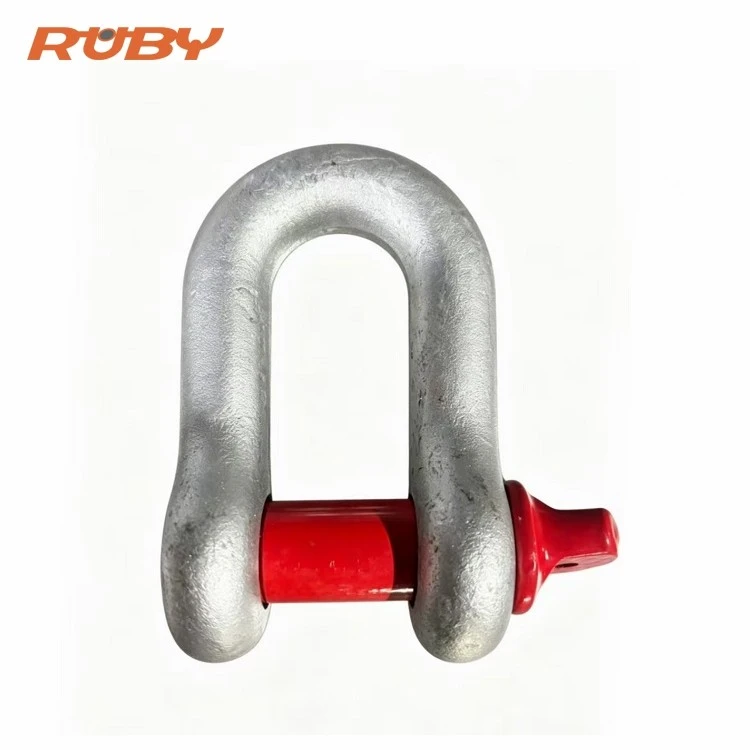

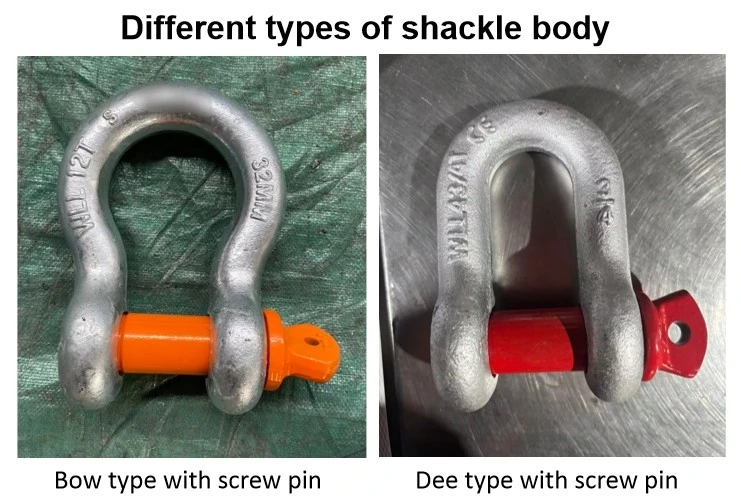

The RUBY screw pin shackle consist of two components: the body and the screw pin.

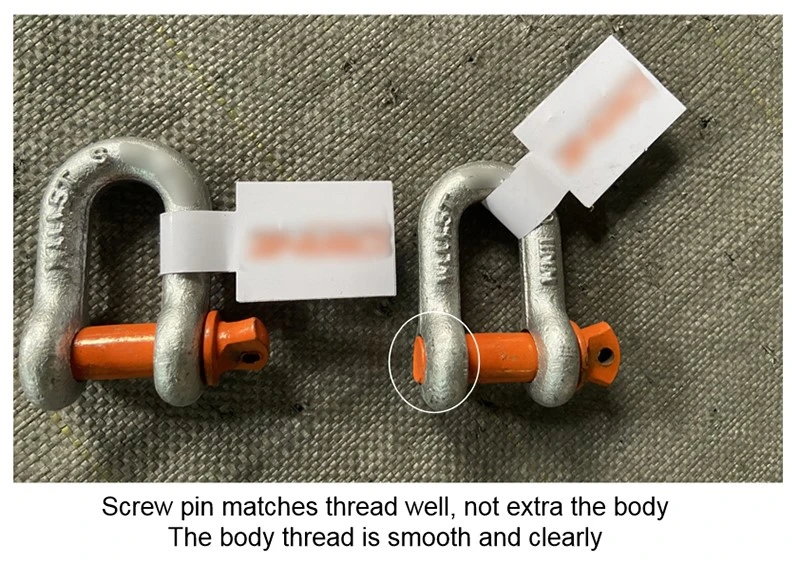

The screw pin includes "ears","pin", and "shoulder".The installation method for the screw pin shackle is as follows: pass the threaded pin through the ears and tighten it.

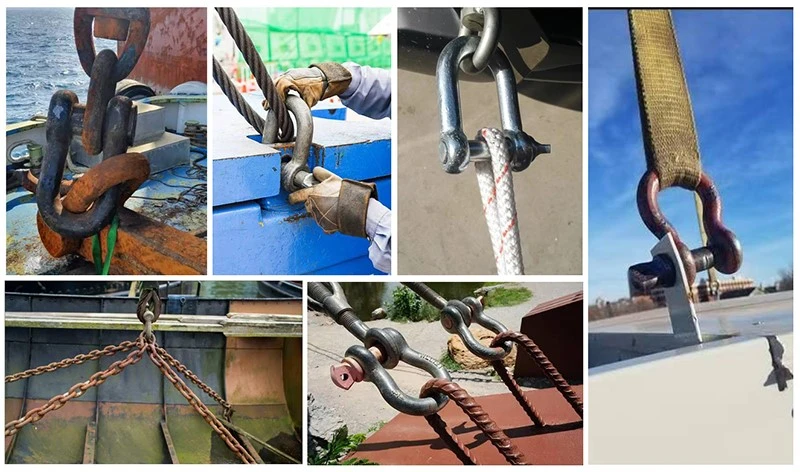

The screw pin shackles offer quick and easy connection and disassembly, making them suitable for rigging requiring rapid deployment or for situations where slings and other hardware need frequent replacement.
Screw pin shackles are not recommended for permanent or long-term installations.
Please note that using slings or other electrified ropes for locking hoisting may cause the bolt pins to rotate, twist, or deform, resulting in loosening. Always tighten the bolt pins before each hoisting operation.

Specification

Nominal size	Dimension, mm (Tolerance +8%, -5%)					WLL	Test force, kN
mm	d	D	W	L	E	t	Destructive test	Proof test
6	6	8	12	22	17	0.50	29.5	9.9
8	8	10	13	26	21	0.75	44.2	14.8
10	10	11	17	32	25	1.0	58.9	19.7
11	11	13	18	37	27	1.5	88.3	29.5
13	13	16	21	41	33	2.0	118	39.3
16	16	22	27	51	40	3.2	189	62.8
19	19	22	32	60	48	4.7	277	92.3
22	22	25	37	71	54	6.5	383	128
25	25	29	43	81	60	8.5	501	167
29	29	32	46	90	67	9.5	560	187
32	32	35	52	100	76	11	707	236
35	35	38	57	113	84	13.5	795	265
38	38	41	60	124	92	17	1010	334
44	44	51	73	146	110	25	1480	491
51	51	57	83	171	127	35	2070	687
57	57	63	95	181	143	42.5	2510	834
63	63	70	105	203	153	55	3240	1080
76	76	83	127	229+	165	85	5010	1330
89	89	95	146	267	203	120	7070	1670
102	102	108	165	318	229	150	8830	1970
