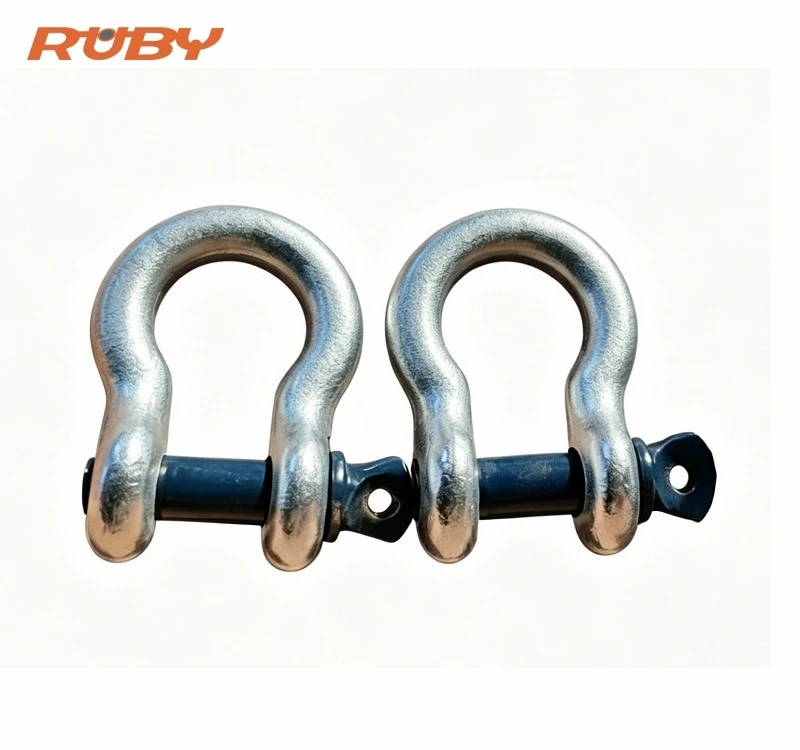

Bow Shackle

Also known as anchor shackles, bow shackles are named for their round, O-shaped shape.It’s suitable for multi-directional loading.

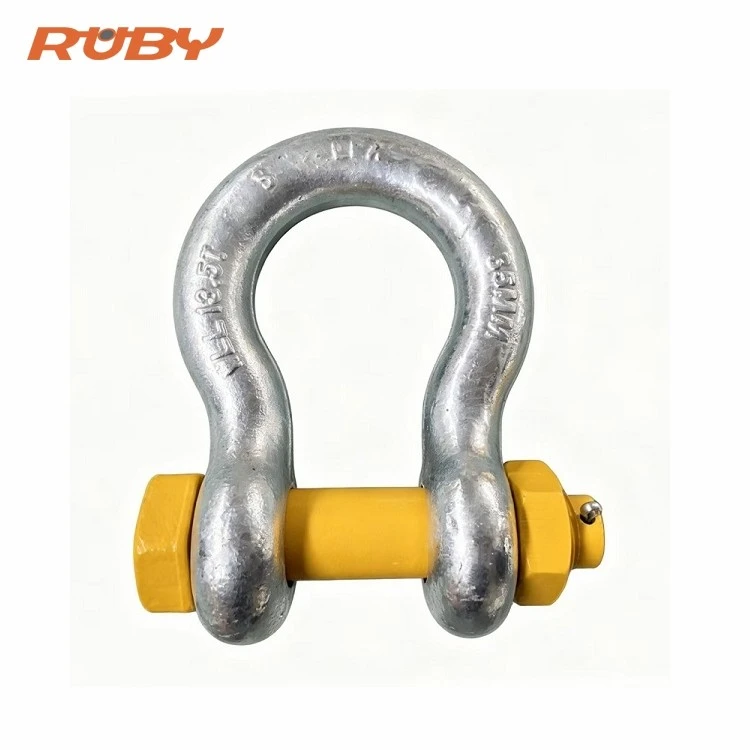

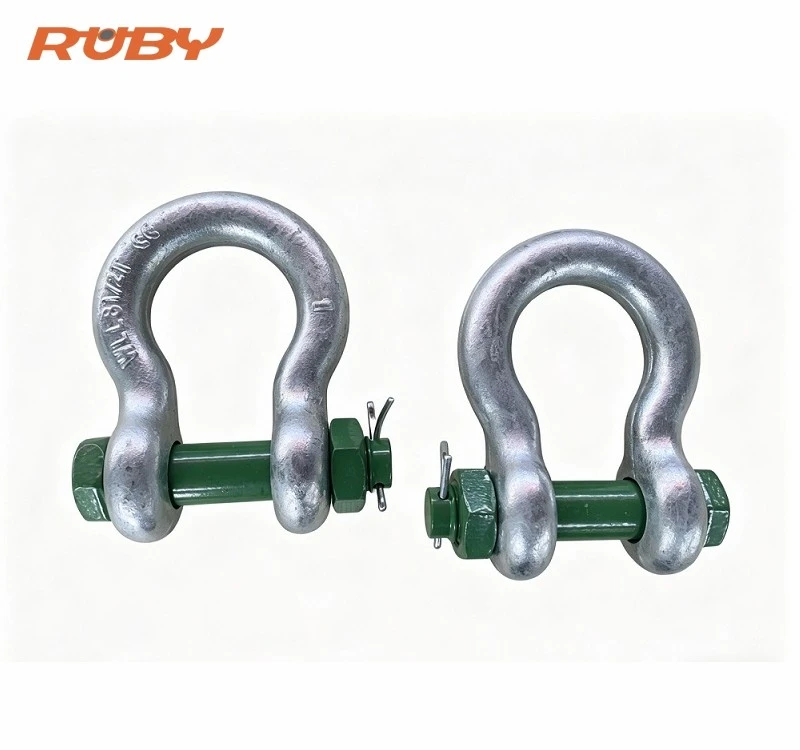

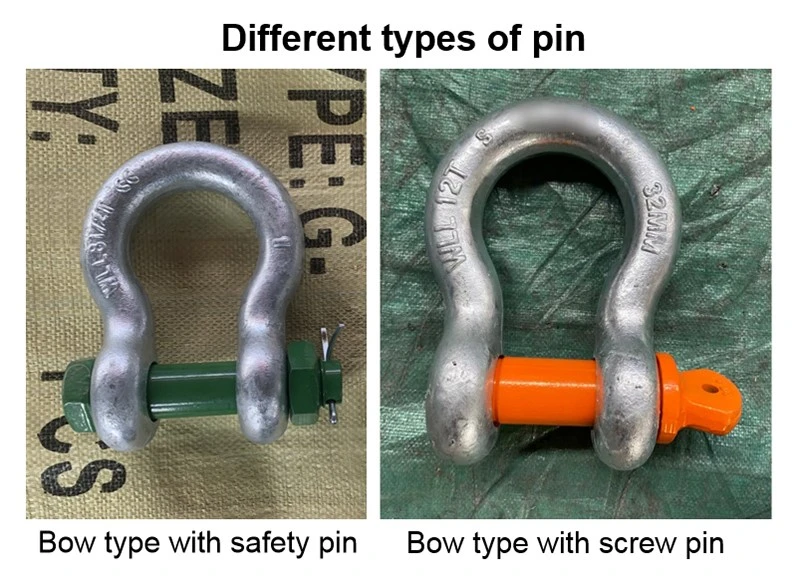

The RUBY bow shackle features a double safety design (screw pin, safety pin) to prevent the pin from accidentally coming loose.

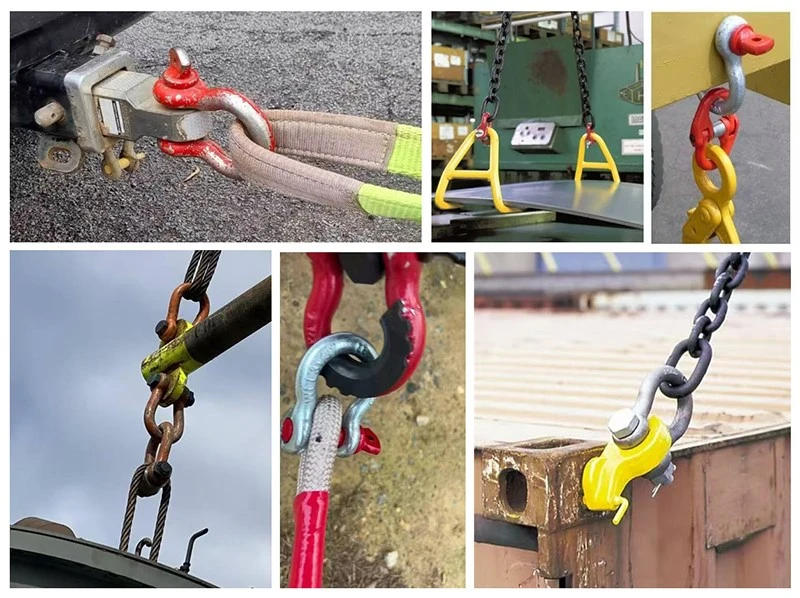

They are primarily used for hoisting, securing, and lifting heavy loads, providing a secure connection between chains, straps, and ropes and so on.

Send Inquiry

Bow Shackle

Also known as anchor shackles, bow shackles are named for their round, O-shaped shape.It's suitable for multi-directional loading.

The RUBY bow shackle features a double safety design (screw pin, safety pin) to prevent the pin from accidentally coming loose.

They are primarily used for hoisting, securing, and lifting heavy loads, providing a secure connection between chains, straps, and ropes and so on.

Specification

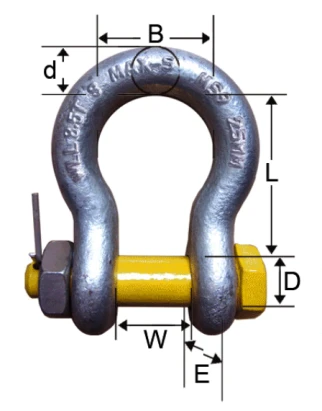

Nominal size	Dimension, mm (Tolerance +8%, -5%)						WLL	Test force, kN
mm	d	D	W	B	L	E	t	Destructive test	Proof test
5	5	6	10	15	22	14	0.33	19.5	6.5
6	6	8	12	20	29	17	0.50	29.5	9.9
8	8	10	13	21	31	21	0.75	44.2	14.8
10	10	11	17	26	37	25	1.0	58.9	19.7
11	11	13	18	29	43	27	1.5	88.3	29.5
13	13	16	21	33	48	33	2.0	118	39.3
16	16	19	27	43	61	40	3.2	189	62.8
19	19	22	32	51	72	48	4.7	277	92.3
22	22	25	37	58	84	54	6.5	383	128
25	25	29	43	68	95	60	8.5	501	167
29	29	32	46	74	108	67	9.5	560	187
32	32	35	52	83	119	76	12	707	236
35	35	38	57	92	133	84	13.5	795	265
38	38	41	60	98	146	92	17	1010	334
44	44	51	73	127	178	110	25	1480	491
51	51	57	83	146	197	127	35	2070	687
57	57	63	95	160	222	143	42.5	2510	834
63	63	70	105	184	267	152	55	3240	1080
76	76	83	127	200	330	165	85	5010	1330
89	89	95	146	241	381	203	120	7070	1670
102	102	108	165	432	432	229	150	8830	1970
