Multi Master Link

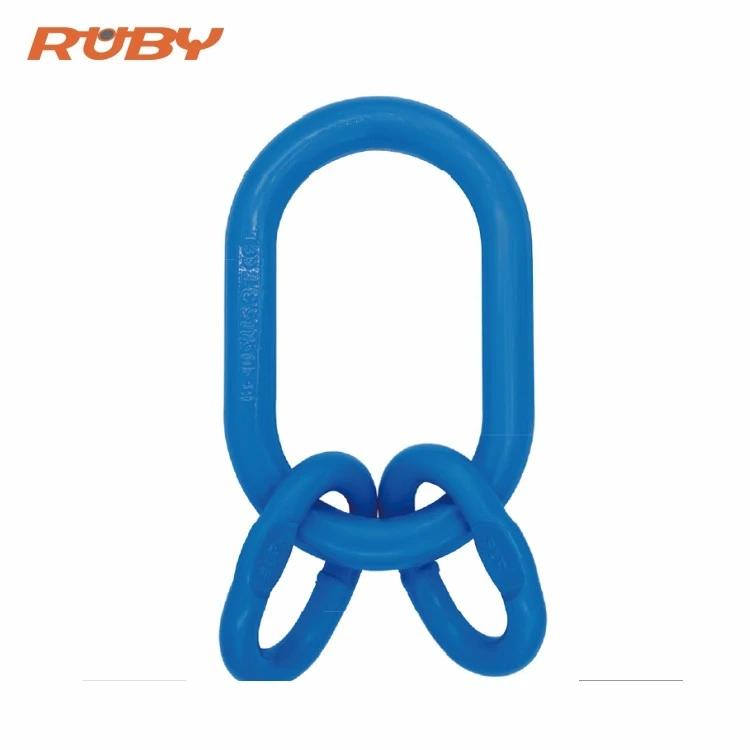

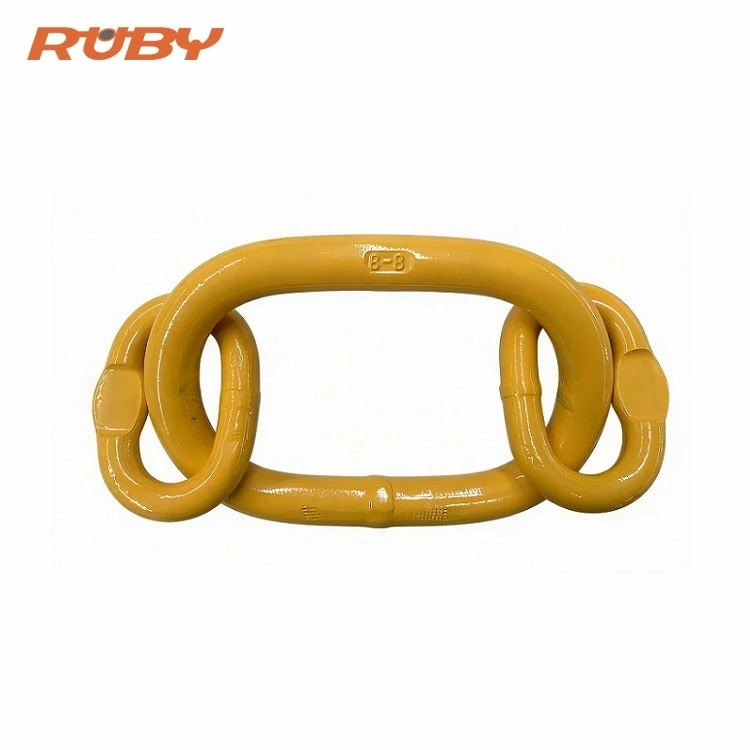

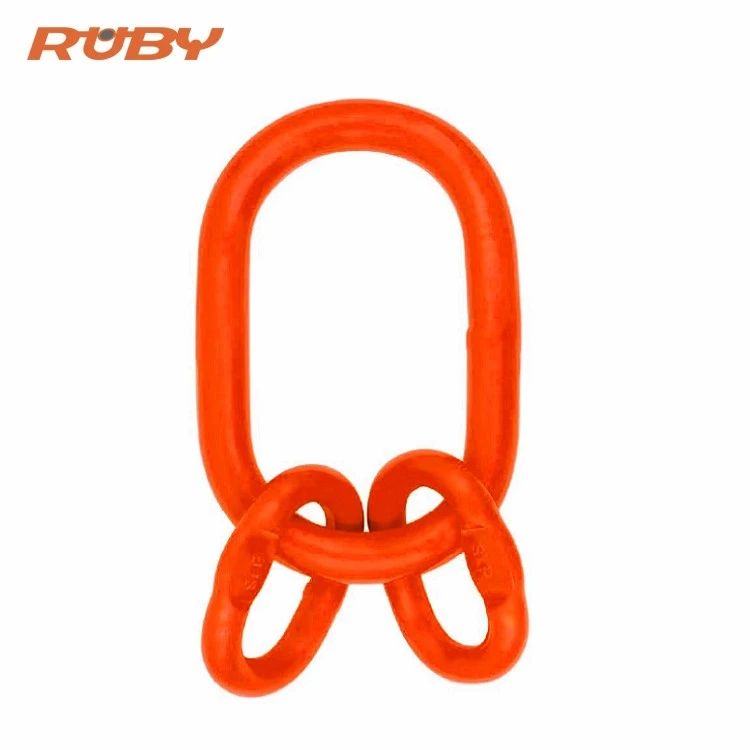

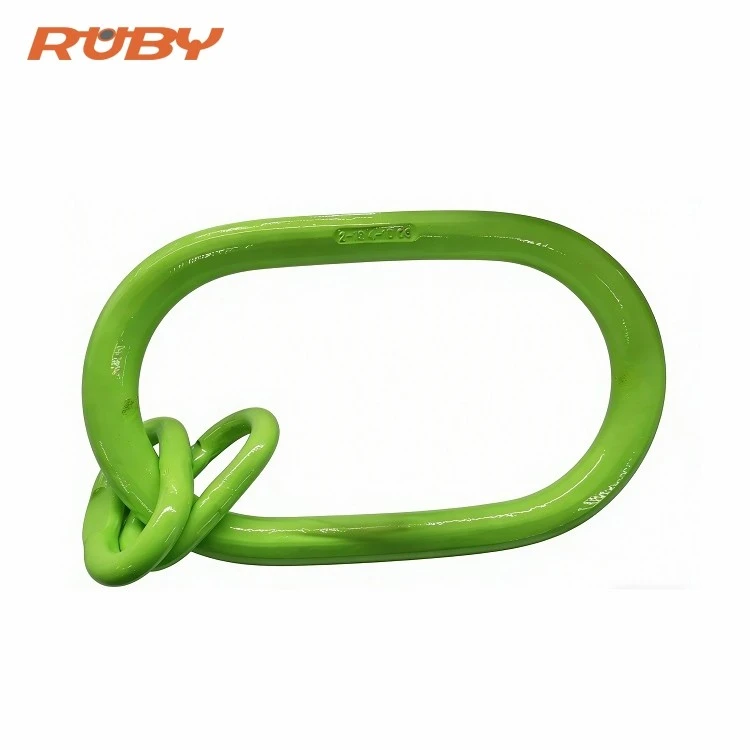

The RUBY multi master link is designed with a large master link and two intermediate links to cater for 3 or 4 leg chain slings or wire rope slings.
It's ideal for use in wastewater and industrial environments.
Made from high-grade alloy steel, this adjustable master link allows quick length adjustment and achieve appropriate load balance during lift operations.
Specification
| PRODUCT CODE | CHAIN SIZES | W.L.L | WEIGHT | DIMENSION mm | PACK | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | Kg | d | L | W | d2 | L2 | W2 | PCs | |
| 32MLA6-8 | 6 | 2.36 | 1.18 | 18 | 135 | 75 | 13 | 54 | 25 | 10 |
| 32MLA7-8 | 7 | 3.15 | 1.24 | 18 | 135 | 75 | 13 | 60 | 38 | 8 |
| 32MLA8-8 | 8 | 4.25 | 2.2 | 22 | 160 | 90 | 16 | 70 | 34 | 8 |
| 32MLA10-8 | 10 | 6.7 | 3.4 | 26 | 180 | 100 | 18 | 85 | 40 | 5 |
| 32MLA13-8 | 13 | 11.2 | 6.1 | 32 | 200 | 110 | 22 | 115 | 50 | 2 |
| 32MLA16-8 | 16 | 17 | 9.98 | 36 | 260 | 140 | 26 | 140 | 65 | 1 |
| 32MLA18-8 | 18 | 21.2 | 18.9 | 45 | 340 | 180 | 32 | 180 | 100 | / |
| 32MLA20-8 | 20 | 26.5 | 22.6 | 50 | 350 | 190 | 32 | 180 | 100 | / |
| 32MLA22-8 | 22 | 31.5 | 25.2 | 50 | 350 | 190 | 36 | 180 | 100 | / |
| 32MLA26-8 | 26 | 45 | 35.2 | 56 | 400 | 200 | 40 | 180 | 100 | / |
| 32MLA28-8 | 28 | 50 | 47 | 63 | 430 | 220 | 45 | 180 | 100 | / |
| 32MLA32-8 | 32 | 63 | 66.46 | 72 | 460 | 250 | 50 | 200 | 110 | / |
Product Details
- Individually proof-tested at Manufacturing Proof Force
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- With safety factor 4:1 for chain sling; 5:1 for wire rope slings
- G80 alloy steel construction; Quenched & Tempered
- Painted Surface Finish
- Speedy assembly
- Cost-effective compared to slings that use multiple components.

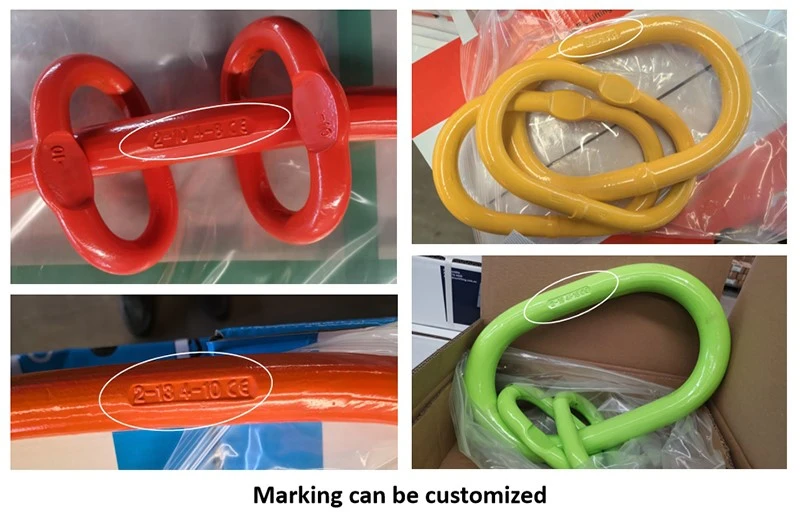

Customization

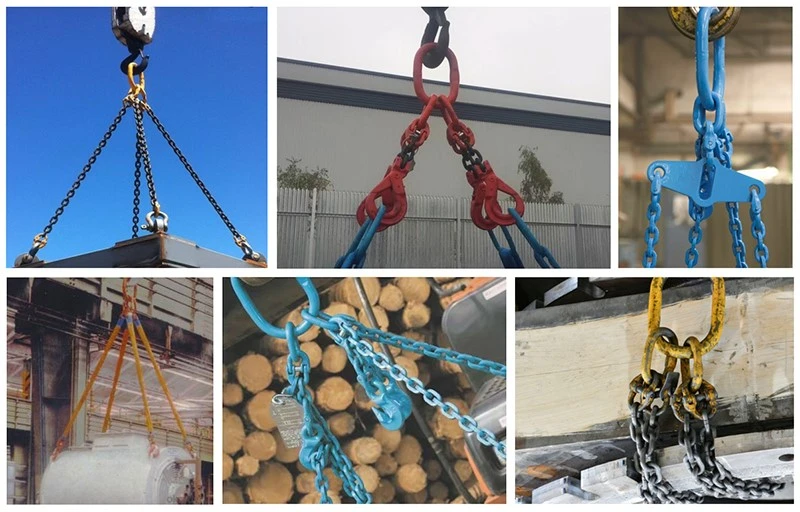

Applications
