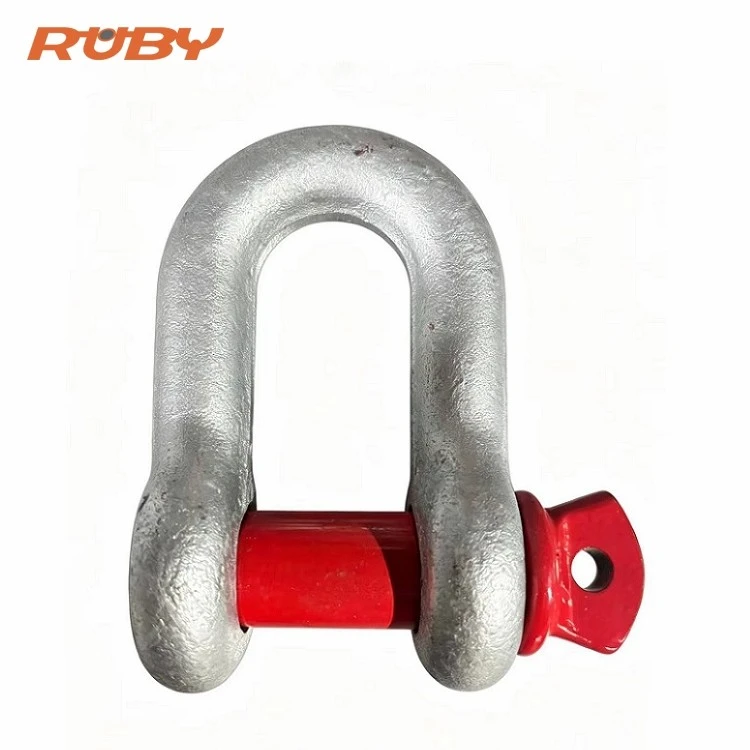

Dee Shackle

The RUBY Dee shackle, sometimes called D ring shackles feature a narrow, D-shaped(chain-shaped or U-shaped) body connected with a screw pin or safety pin.
Dee shackle is typically used with single-leg slings and ropes to offer a ideal solution for lifting in a straight line.
They are commonly found on cranes, ships, and other equipment that needs to maintain the linear movement of loads.

Send Inquiry

Dee Shackle

The RUBY Dee shackle, sometimes called D ring shackles feature a narrow, D-shaped(chain-shaped or U-shaped) body connected with a screw pin or safety pin.

Dee shackle is typically used with single-leg slings and ropes to offer a ideal solution for lifting in a straight line.

They are commonly found on cranes, ships, and other equipment that needs to maintain the linear movement of loads.

Specification

Nominal size	Dimension, mm (Tolerance +8%, -5%)					WLL	Test force, kN
mm	d	D	W	L	E	t	Destructive test	Proof test
6	6	8	12	22	17	0.50	29.5	9.9
8	8	10	13	26	21	0.75	44.2	14.8
10	10	11	17	32	25	1.0	58.9	19.7
11	11	13	18	37	27	1.5	88.3	29.5
13	13	16	21	41	33	2.0	118	39.3
16	16	22	27	51	40	3.2	189	62.8
19	19	22	32	60	48	4.7	277	92.3
22	22	25	37	71	54	6.5	383	128
25	25	29	43	81	60	8.5	501	167
29	29	32	46	90	67	9.5	560	187
32	32	35	52	100	76	11	707	236
35	35	38	57	113	84	13.5	795	265
38	38	41	60	124	92	17	1010	334
44	44	51	73	146	110	25	1480	491
51	51	57	83	171	127	35	2070	687
57	57	63	95	181	143	42.5	2510	834
63	63	70	105	203	153	55	3240	1080
76	76	83	127	229+	165	85	5010	1330
89	89	95	146	267	203	120	7070	1670
102	102	108	165	318	229	150	8830	1970
