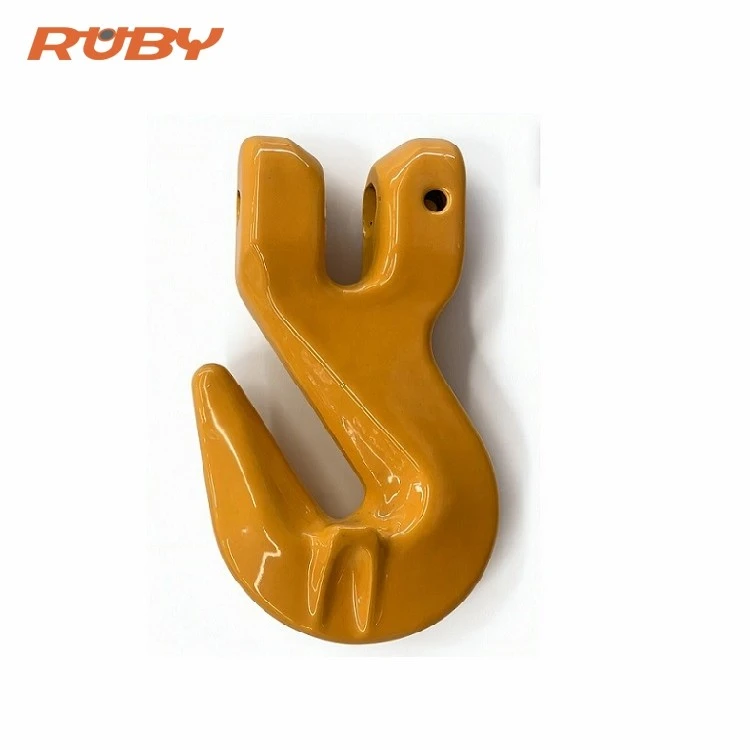

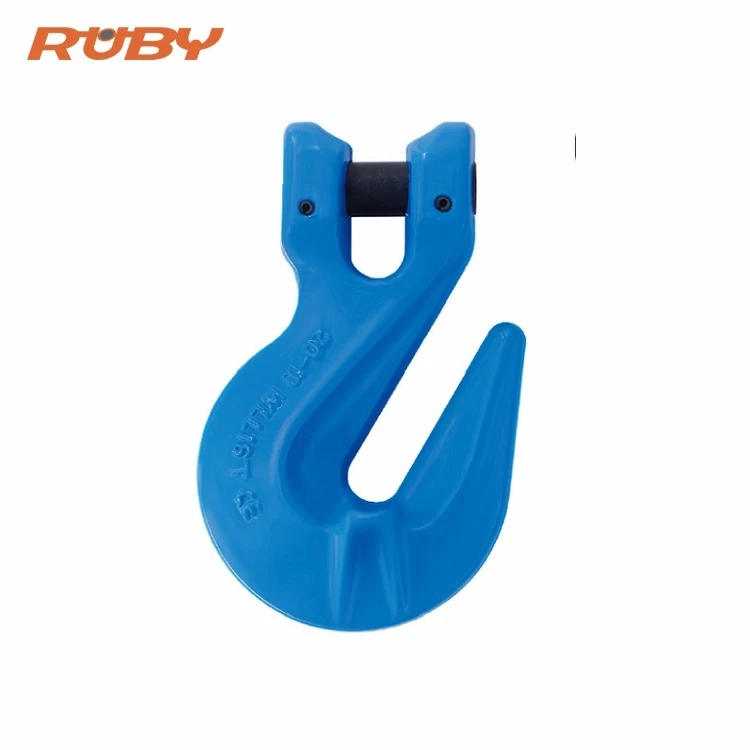

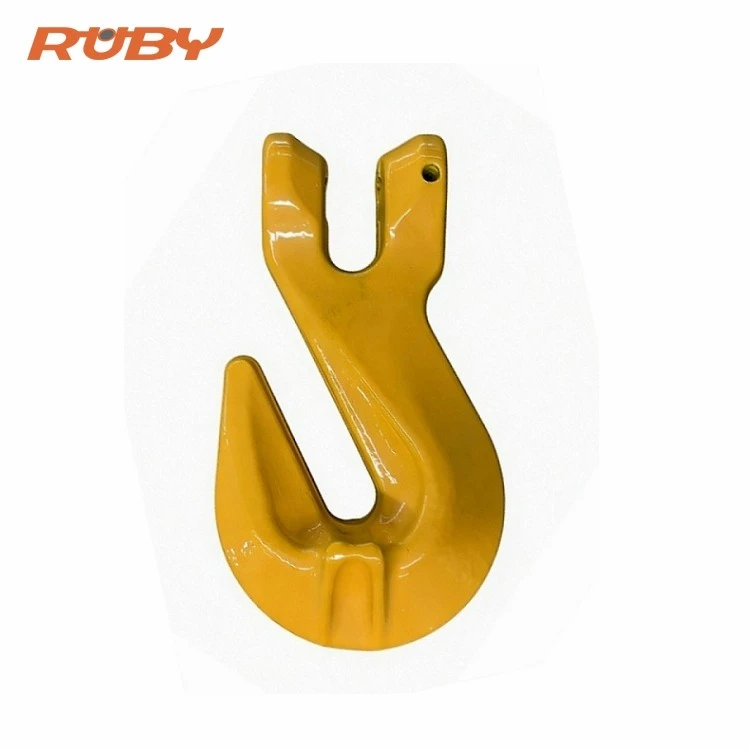

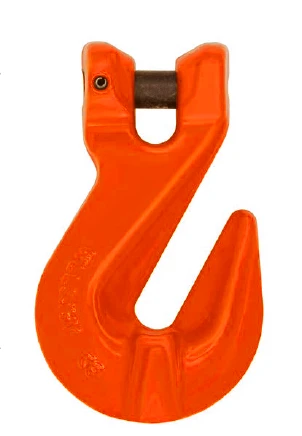

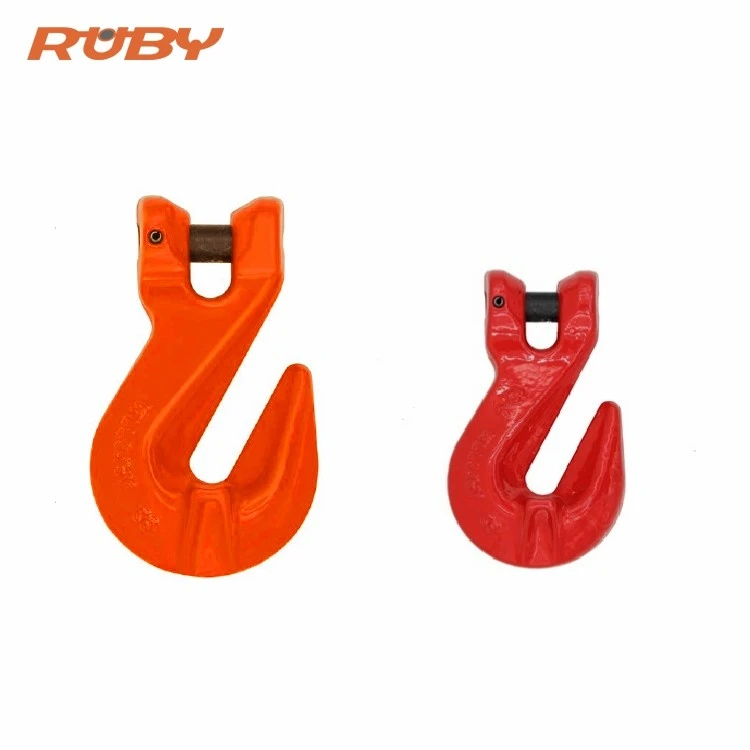

Clevis Grab Hook
The RUBY Clevis Grab Hook are manufactured from forged alloy steel, it is quenched and tempered, the powder-coated surface ensures corrosion resistance and durability.
It features a clevis pin attachment (a narrow throat) for direct chain connection and supporting cradle lugs to prevent chain link deformation while under load.
They are wildly used in chain tightening, tie down, or lifting applications.
Specification
| PRODUCT CODE | CHAIN SIZES | W.L.L | M.B.L | WEIGHT | DIMENSION mm | PACK | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | tonne | Kg | H±2 | W2±1 | D±0.5 | W±1.5 | E±1 | PCs | |
| 86SGH6-8C | 6 | 1.12 | 4.48 | 0.25 | 75 | 8 | 8 | 41 | 8.3 | 100 |
| 86SGH78-8C | 8 | 2 | 8 | 0.32 | 89 | 9.5 | 9.5 | 57 | 11 | 70 |
| 86SGH10-8C | 10 | 3.15 | 12.6 | 0.73 | 46 | 12.5 | 12.5 | 70 | 13 | 30 |
| 86SGH13-8C | 13 | 5.3 | 21.2 | 1.6 | 59 | 15 | 15 | 89 | 16.5 | 15 |
| 86SGH16-8C | 16 | 8 | 32 | 2.8 | 70 | 18.5 | 18.5 | 109 | 19 | 8 |
| 86SGH20-8C | 20 | 12.5 | 50 | 5 | 80 | 23 | 23 | 130 | 24 | 4 |
| 86SGH22-8C | 22 | 15 | 60 | 6.3 | 98 | 27 | 27 | 151 | 27 | 2 |
| 86SGH26-8C | 26 | 21.2 | 84.8 | 14.5 | 110 | 30 | 30 | 175 | 30 | 1 |
Product Details
- Individually proof test at 2.5 times WLL
- Fatigue tested at 1.5 times WLL for 20000 cycles each batch
- 100% magnaflux crack detection
- All load pins are 100% individually inspected and tested
- 4:1 safety factor
- Forged G80 alloy steel-Quenched and Tempered
- Easy assembly
- Finish: Painted
- Used as a type of chain shortener
Customization
Applications
