Shackle

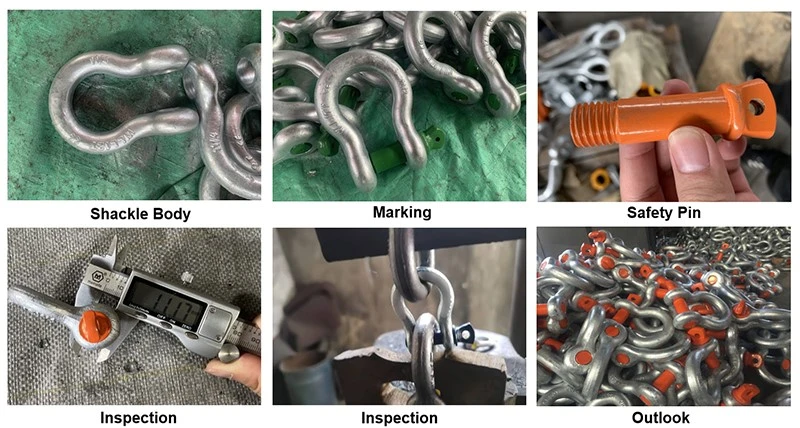

The RUBY shackle consist of two main components: the body and the pin.

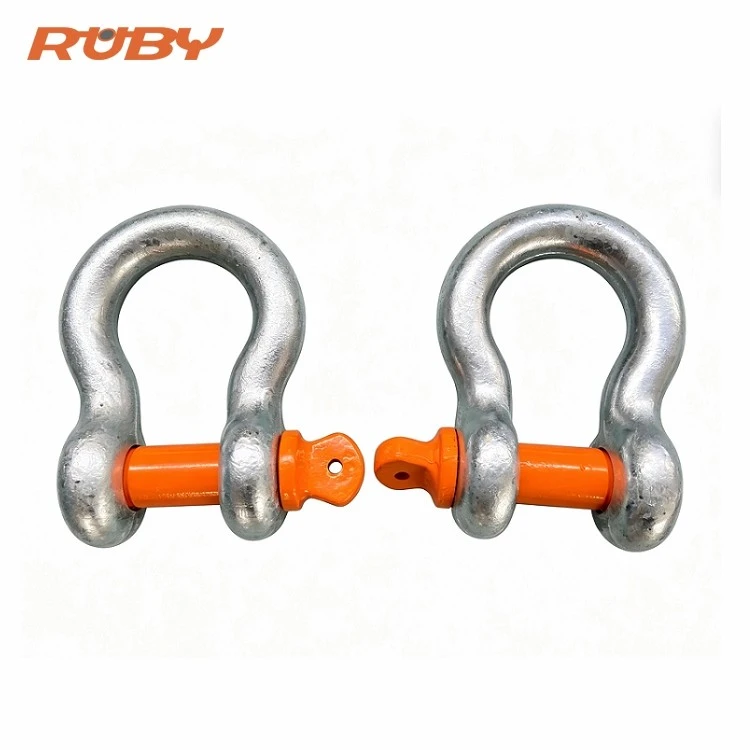

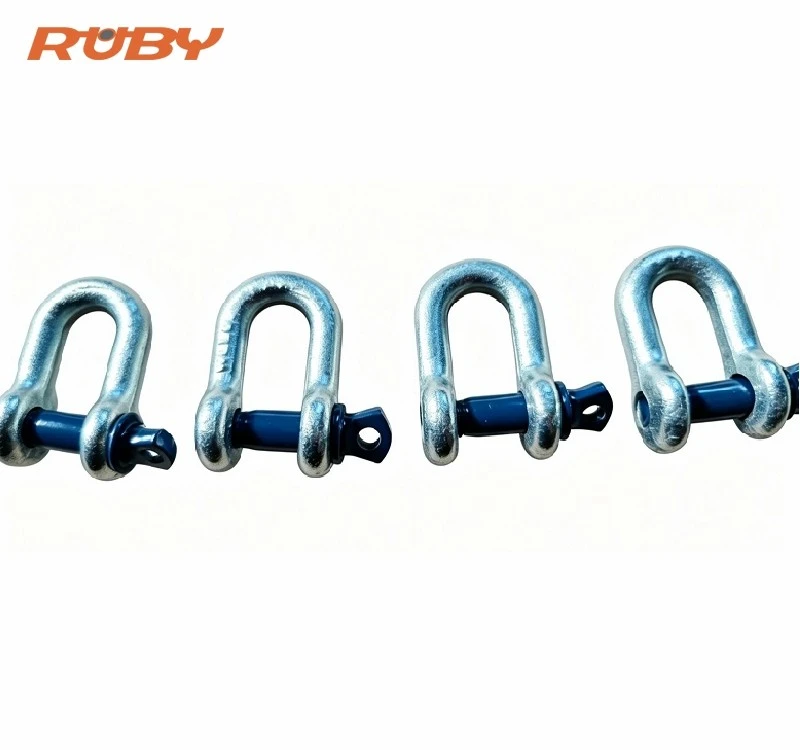

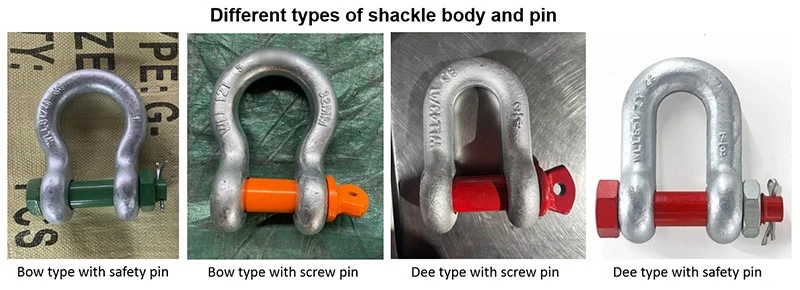

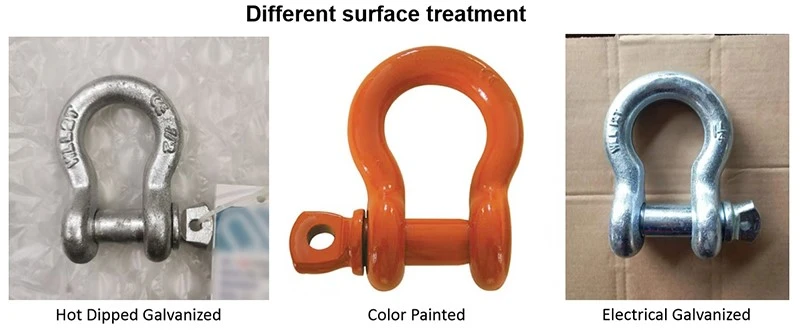

The body can be manufactured in two configurations: Dee type(chain shape or U shape) and Bow type(anchor shape or horseshoe shape).

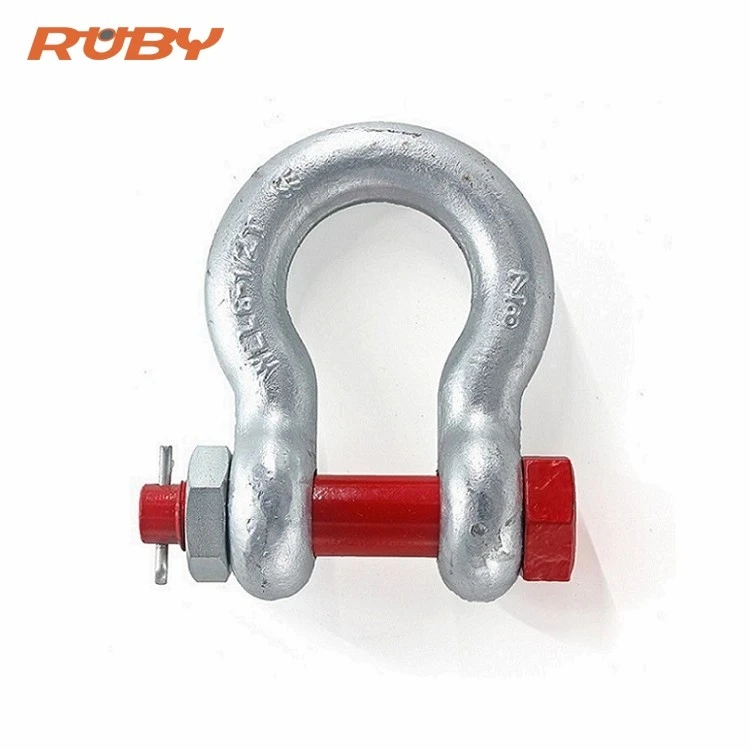

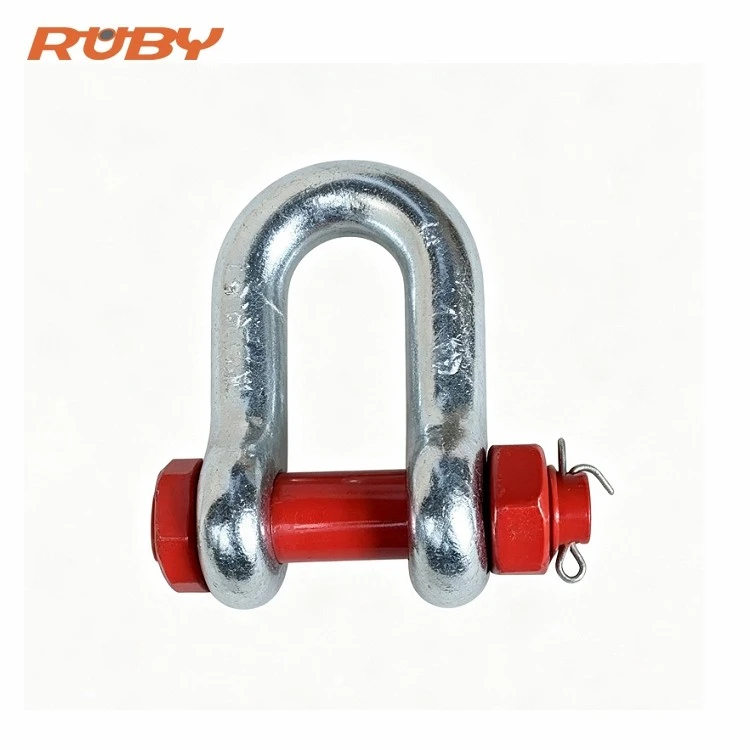

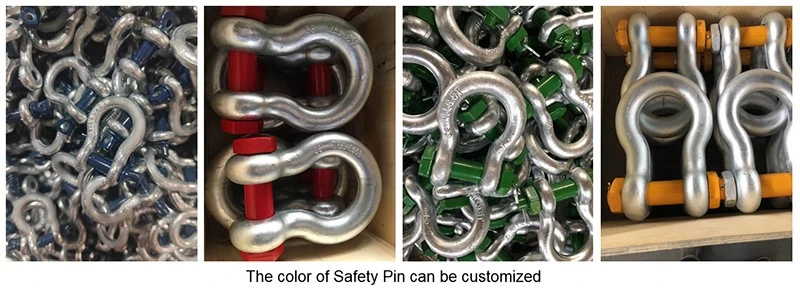

Each body shape can be used with a screw pin or a bolt-type(safety) pin. Shackle pins or bolts are often threaded or part-threaded.The pin passes through both ends of the shackle body, forming a closed connection.
They could be used together to ensure safety and prevent the shackle pins from loosening under load or in applications involving vibration or motion.

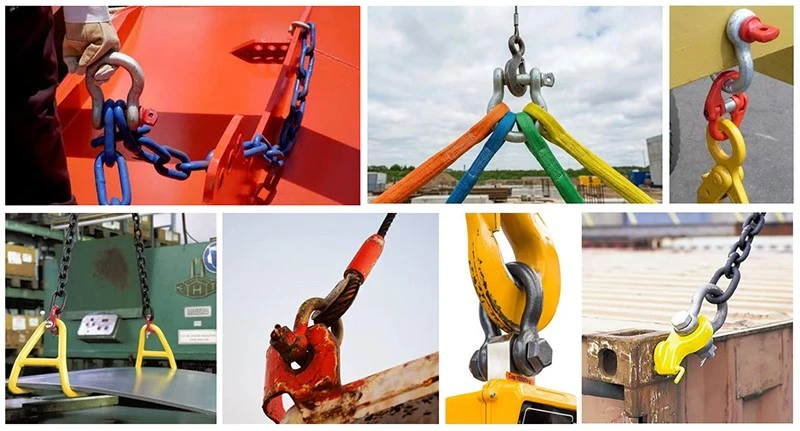

Shackle is typically used in conjunction with other lifting equipment and accessories such as chain slings or wire rope slings and webbing slings,offering a effective solution in a variety range of industrial and commercial settings.

Specification

Nominal size	Dimension, mm (Tolerance +8%, -5%)						WLL	Test force, kN
mm	d	D	W	B	L	E	t	Destructive test	Proof test
5	5	6	10	15	22	14	0.33	19.5	6.5
6	6	8	12	20	29	17	0.50	29.5	9.9
8	8	10	13	21	31	21	0.75	44.2	14.8
10	10	11	17	26	37	25	1.0	58.9	19.7
11	11	13	18	29	43	27	1.5	88.3	29.5
13	13	16	21	33	48	33	2.0	118	39.3
16	16	19	27	43	61	40	3.2	189	62.8
19	19	22	32	51	72	48	4.7	277	92.3
22	22	25	37	58	84	54	6.5	383	128
25	25	29	43	68	95	60	8.5	501	167
29	29	32	46	74	108	67	9.5	560	187
32	32	35	52	83	119	76	12	707	236
35	35	38	57	92	133	84	13.5	795	265
38	38	41	60	98	146	92	17	1010	334
44	44	51	73	127	178	110	25	1480	491
51	51	57	83	146	197	127	35	2070	687
57	57	63	95	160	222	143	42.5	2510	834
63	63	70	105	184	267	152	55	3240	1080
76	76	83	127	200	330	165	85	5010	1330
89	89	95	146	241	381	203	120	7070	1670
102	102	108	165	432	432	229	150	8830	1970

Nominal size	Dimension, mm (Tolerance +8%, -5%)					WLL	Test force, kN
mm	d	D	W	L	E	t	Destructive test	Proof test
6	6	8	12	22	17	0.50	29.5	9.9
8	8	10	13	26	21	0.75	44.2	14.8
10	10	11	17	32	25	1.0	58.9	19.7
11	11	13	18	37	27	1.5	88.3	29.5
13	13	16	21	41	33	2.0	118	39.3
16	16	22	27	51	40	3.2	189	62.8
19	19	22	32	60	48	4.7	277	92.3
22	22	25	37	71	54	6.5	383	128
25	25	29	43	81	60	8.5	501	167
29	29	32	46	90	67	9.5	560	187
32	32	35	52	100	76	11	707	236
35	35	38	57	113	84	13.5	795	265
38	38	41	60	124	92	17	1010	334
44	44	51	73	146	110	25	1480	491
51	51	57	83	171	127	35	2070	687
57	57	63	95	181	143	42.5	2510	834
63	63	70	105	203	153	55	3240	1080
76	76	83	127	229+	165	85	5010	1330
89	89	95	146	267	203	120	7070	1670
102	102	108	165	318	229	150	8830	1970
