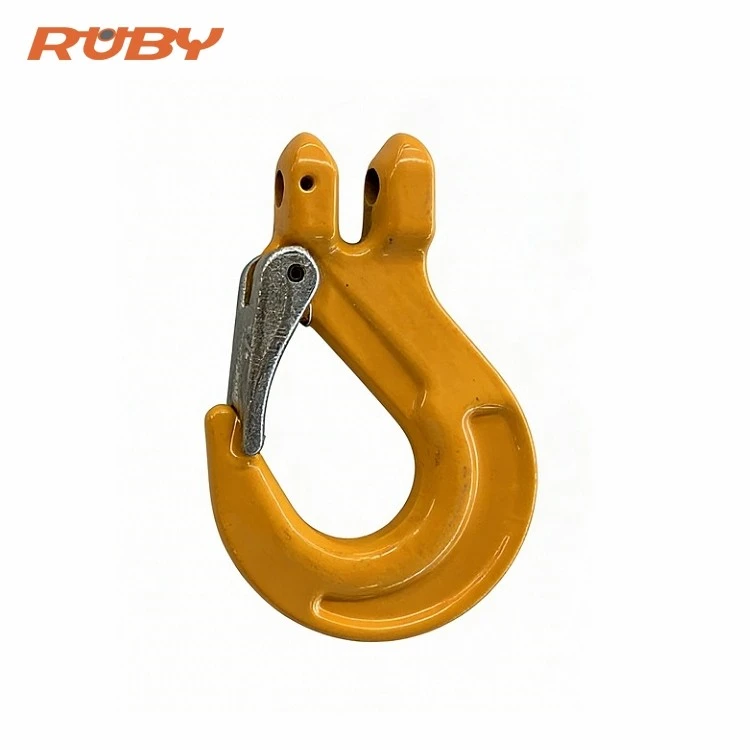

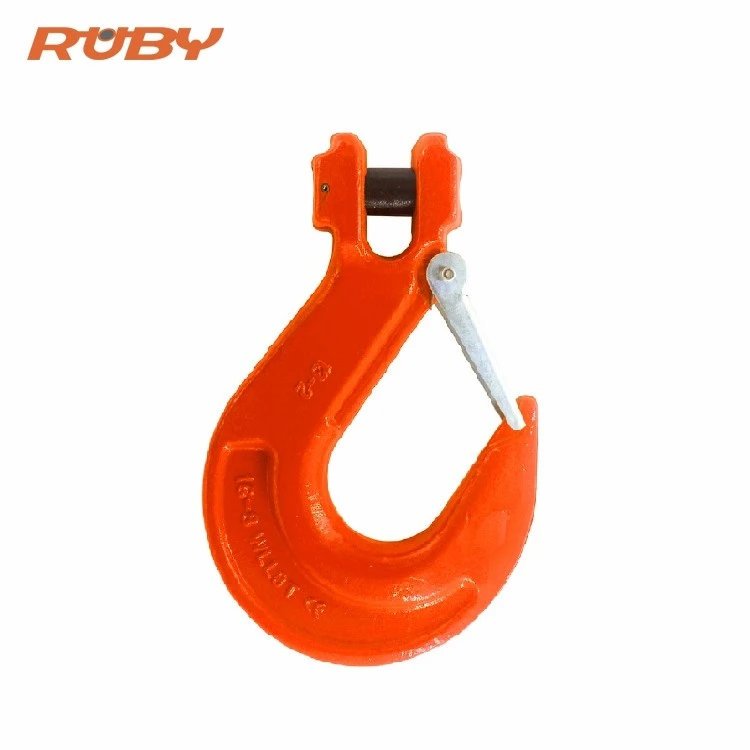

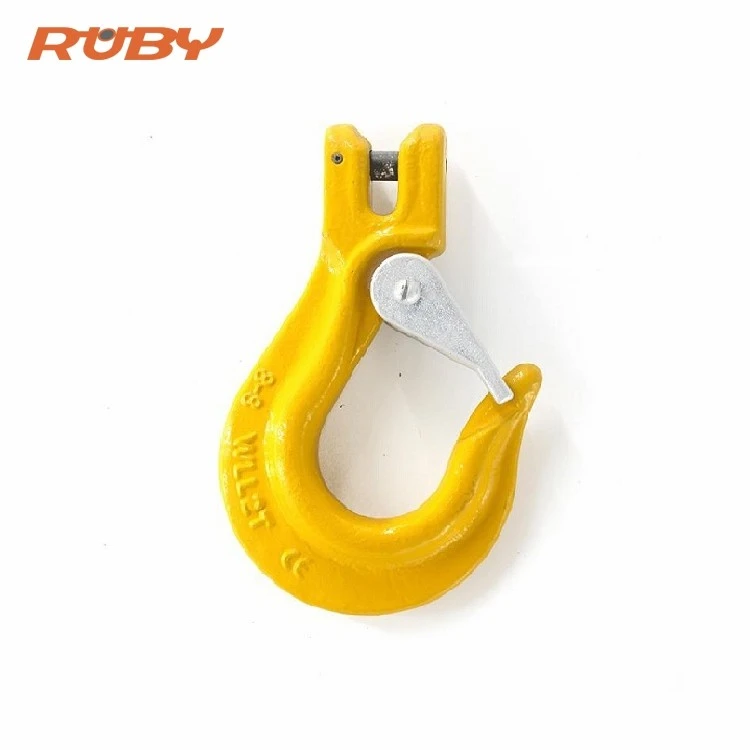

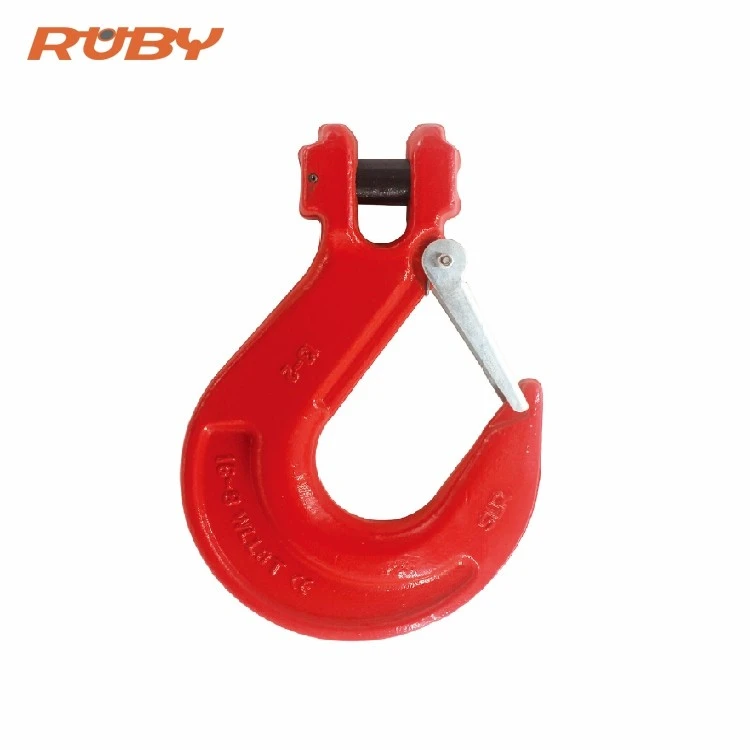

Clevis Sling Hook

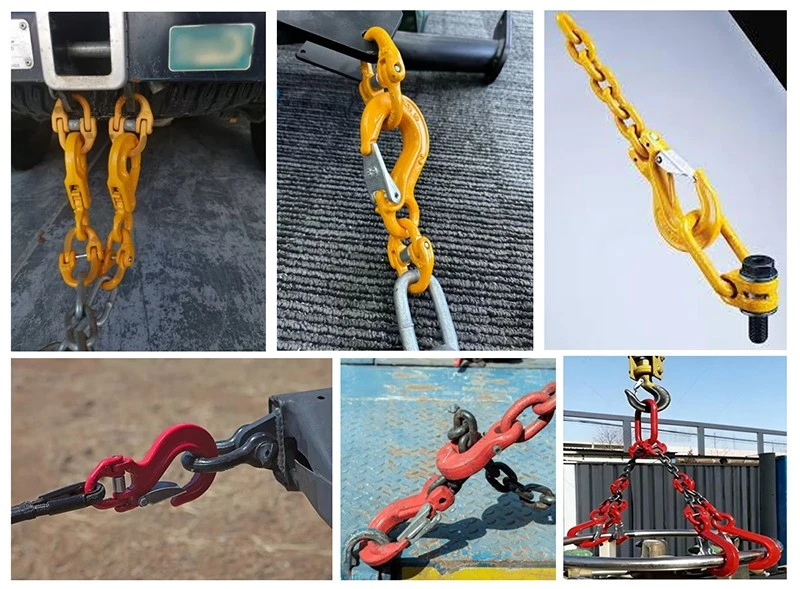

Clevis Sling Hooks are suited for a variety of chain sling applications.
The hook have a wide throat, making rigging applications easier and more efficient. The latch hook helps to reduce damage to the latch top when the hook tip interlocks with the hook body.
Due to its clevis attachment type,this hook is capable of attachment directly onto chain.Manufactured from alloy steel, the clevis sling hook shows an excellent balance between toughness and ductility.

Send Inquiry

Clevis Sling Hook

Clevis Sling Hooks are suited for a variety of chain sling applications.

The hook have a wide throat, making rigging applications easier and more efficient. The latch hook helps to reduce damage to the latch top when the hook tip interlocks with the hook body.

Due to its clevis attachment type,this hook is capable of attachment directly onto chain.Manufactured from alloy steel, the clevis sling hook shows an excellent balance between toughness and ductility.

Specification

PRODUCT CODE	CHAIN SIZES	W.L.L	M.B.L	WEIGHT	DIMENSION mm					PACK
	mm	tonne	tonne	Kg	L±2	W2±1.5	W1±0.5	E±1	H2±1	PCs
12SH6-8C	6	1.12	4.48	0.32	76	32	8	26	23	50
12SH78-8C	7 or 8	2	8	0.48	85.5	37	9.5	29	32.5	30
12SH10-8C	10	3.15	12.6	0.95	104	49	13	39	35	20
12SH13-8C	13	5.3	21.2	1.8	128	56.5	16.5	47	42.5	10
12SH16-8C	16	8	32	3.4	150	70.5	21.5	55	54	6
12SH20-8C	20	12.5	50	6	180	77	24	61	58	2
12SH22-8C	22	15	60	10.4	213	91	27	72	62	2
12SH26-8C	26	21.2	84.8	14.5	250	117	30	85	75	2L
12SH32-8C	32	31.5	126	31.5	317	150	35	106	88	2L

Clevis Sling Hook specification

Product Details

Proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times the WLL for 20000 cycles each batch
Heavy-duty latch for positive load retention
4:1 safety factor
Forged G80 alloy steel
Painted Finish
To be used with the same grade chain
Easy to Use: With a strong hook pin and cotter pin for secure attachment and quick release
