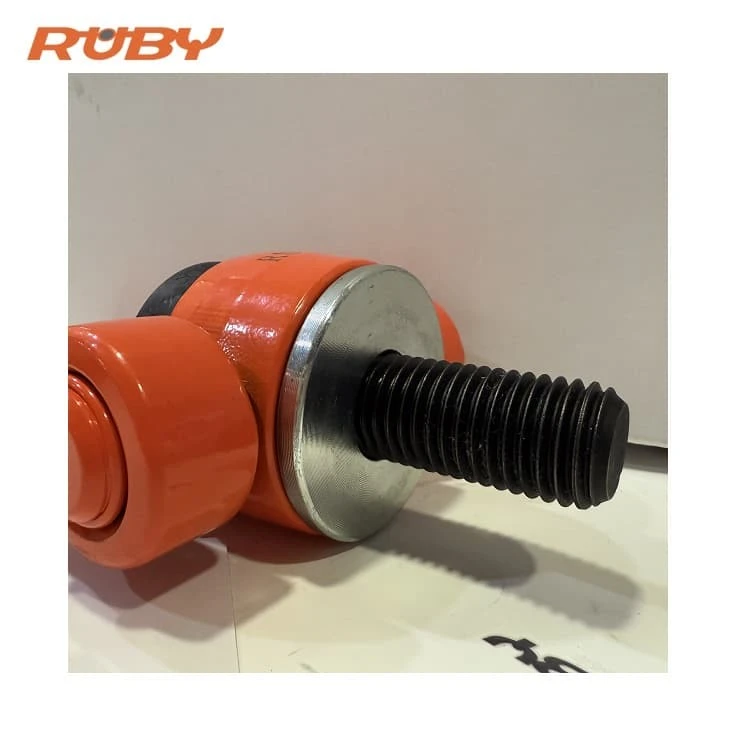

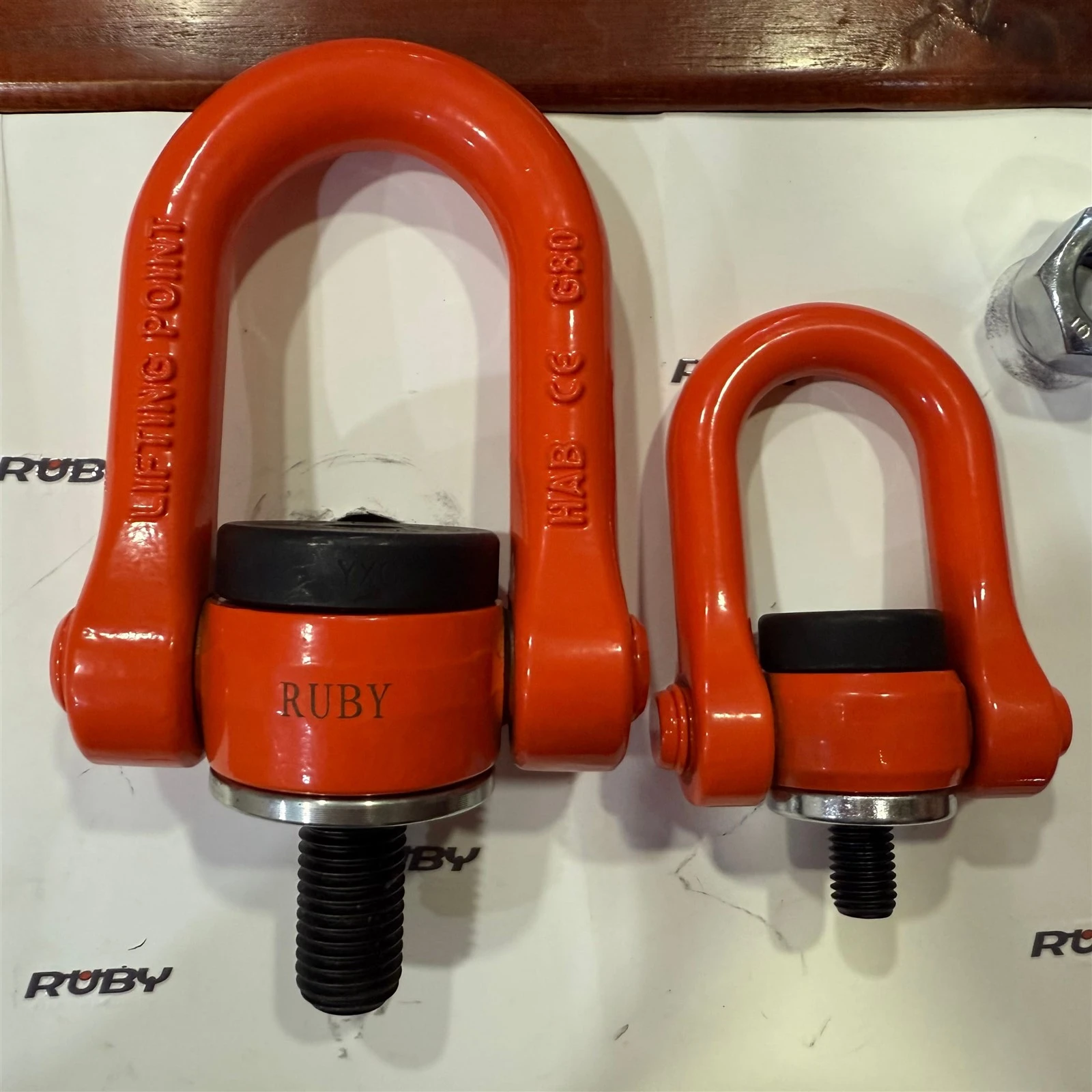

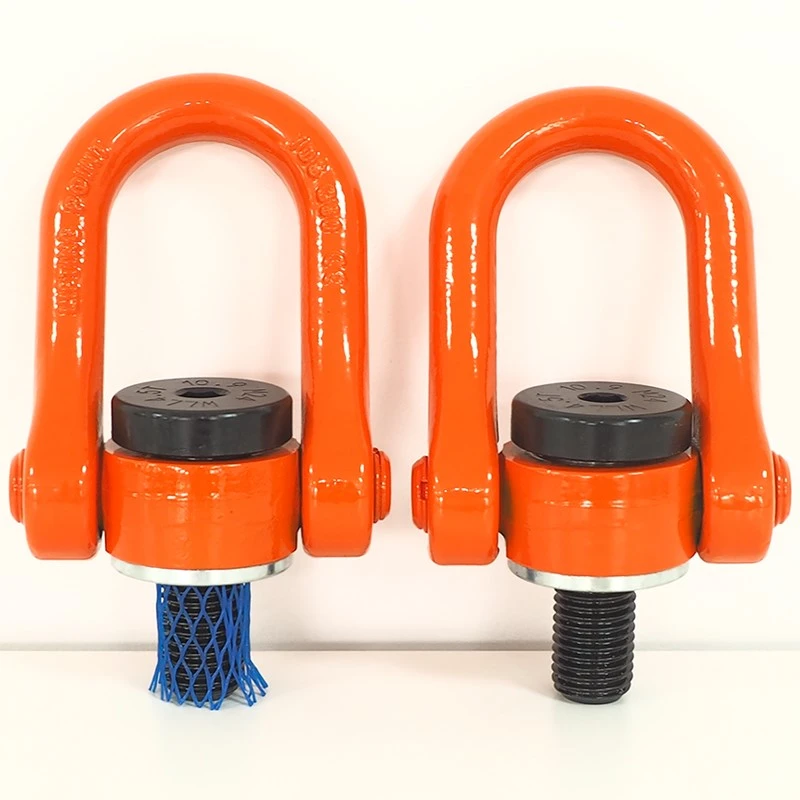

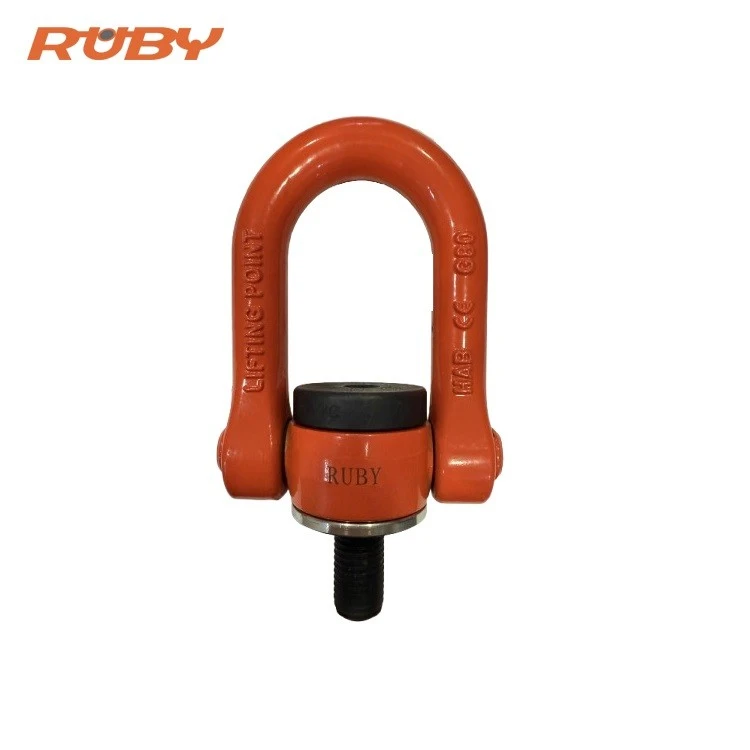

Grade 80 Heavy Lift Swivel Hoist Ring

Swivel hoist rings can adapt to various load angles and can cope with slight changes in unbalanced loads during complex lifting operations.

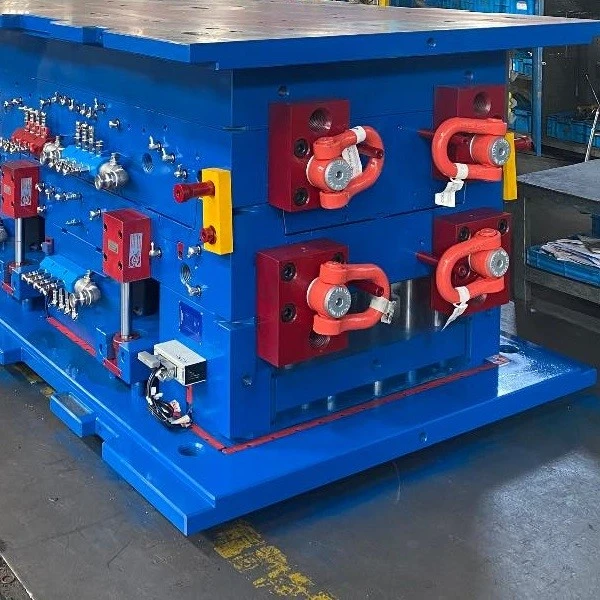

They secure to lifting points on loads and connect to slings, chains, hooks, and other types of lifting and rigging equipment to lift, secure, or move loads.

Metric Thread

Product code	WLL	METRIC THREAD			DIMENSIONS								TORQUE	N.W.
		M	L	PITCH	A	B	C	D	F	G	H	S
	T	mm	mm	mm	mm								Nm	kg
RP002-M 8	0.5	8	12	1.25	50	37	76	14	101	49	38	8	40	0.8
RP002-M10	0.7	10	16	1.5	50	37	76	14	101	49	38	8	40	0.8
RP002-M12	1.0	12	18	1.75	50	37	76	14	101	49	38	8	40	0.8
RP002-M14	1.5	14	21	2	50	37	76	14	101	49	38	8	100	0.8
RP002-M16	2.0	16	24	2	50	37	76	14	101	49	38	8	130	0.8
RP002-M18	2.5	18	40	2.5	74	54	105	20	145	77	48	12	170	1.9
RP002-M20	3.0	20	40	2.5	74	54	105	20	145	77	48	12	170	2
RP002-M22	3.0	22	40	2.5	74	54	105	20	145	77	48	12	170	2.1
RP002-M24	4.5	24	40	3	74	54	105	20	145	77	48	12	280	2.5
RP002-M27	5.0	27	40	3	98	73	146	30	201	103	68	17	500	5.5
RP002-M30	7.3	30	45	3.5	98	73	146	30	201	103	68	17	600	5.5
RP002-M33	8.0	36	50	3.5	98	73	146	30	201	103	68	17	600	5.5
RP002-M36	10	36	54	4	98	73	146	30	201	103	68	17	600	5.5
RP002-M39	10	42	58	4	98	73	146	30	201	103	68	17	800	6
RP002-M42	12.5	42	63	4.5	98	73	146	30	201	103	68	17	800	6

Product code	WLL	METRIC THREAD			DIMENSIONS								TORQUE	N.W.
RP002-M48	20	48	72	5	95	104	120	36	257	158	101	27	800	11.5
RP002-M52	20	52	68	5	120	93	182	36	249	125	84	19	900	12
RP002-M56	25	56	78	5.5	120	93	182	36	249	125	84	19	900	12
RP002-M64	33	64	100	6	185	144	280	58	395	195	136	36	1000	42
