Grade 80 Swivel Hoist Ring

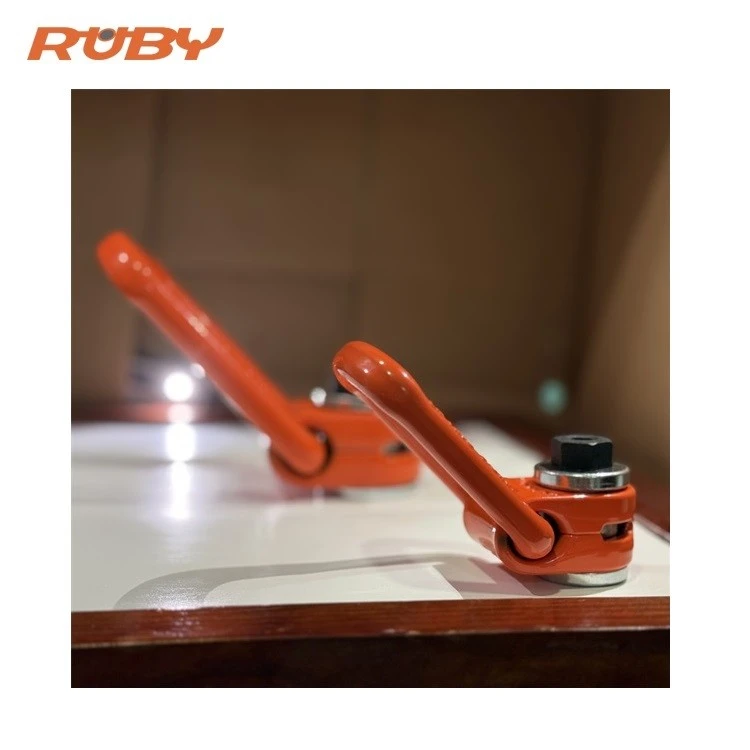

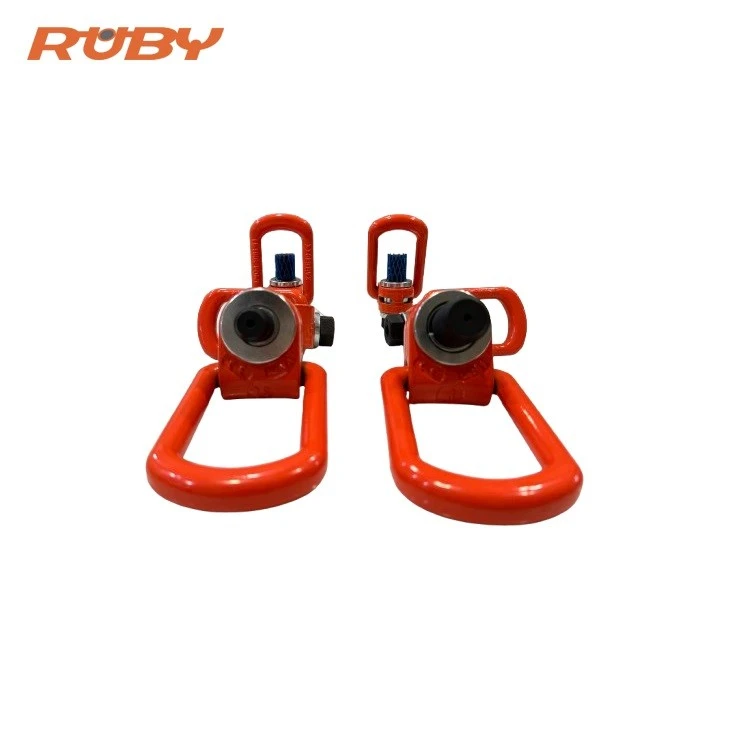

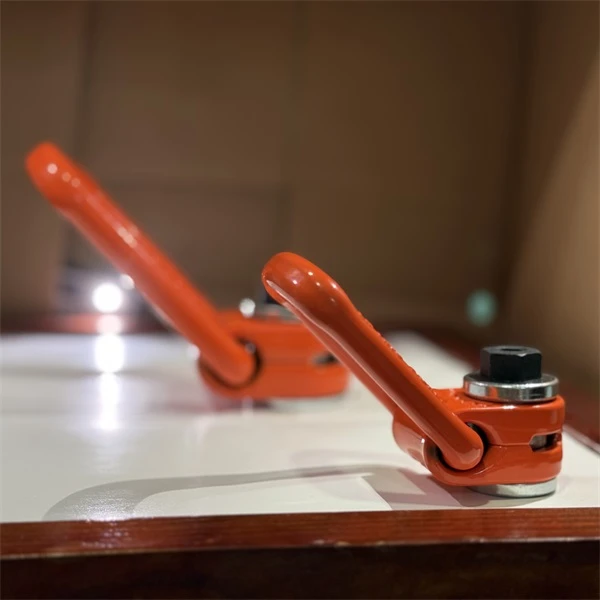

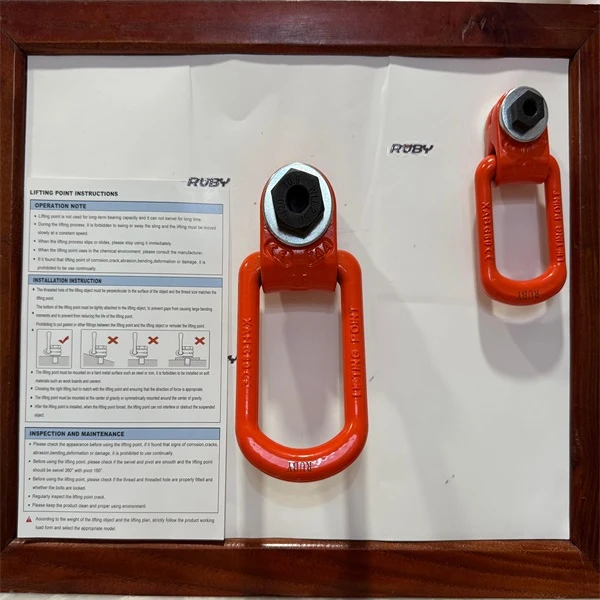

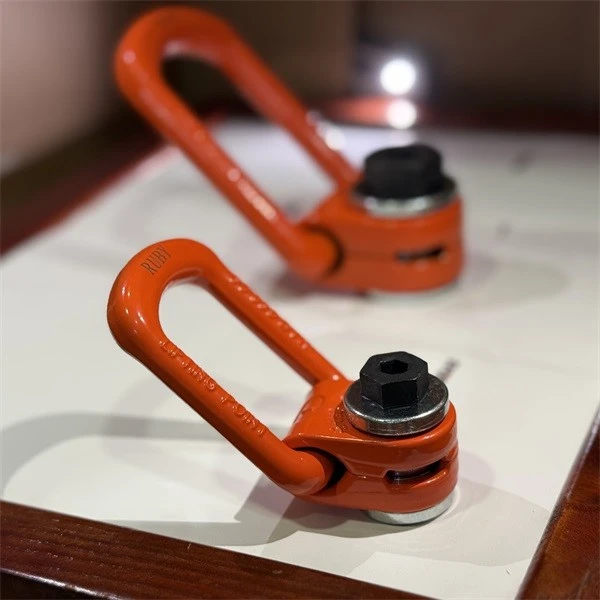

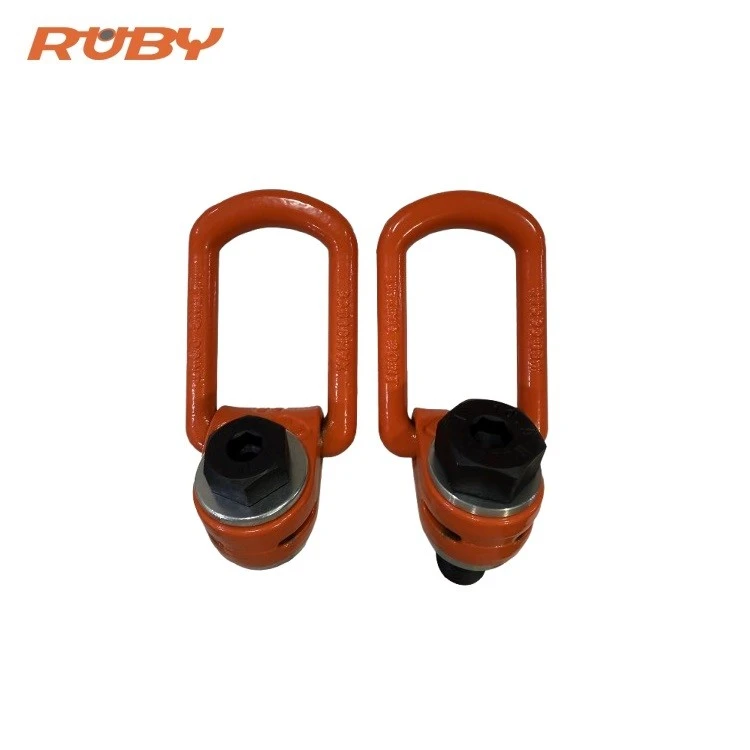

The RUBY swivel hoist ring is an efficient item in the area of lifting and rigging.

The device is typically fixed to a structure or equipment and provides a full range of

motion.

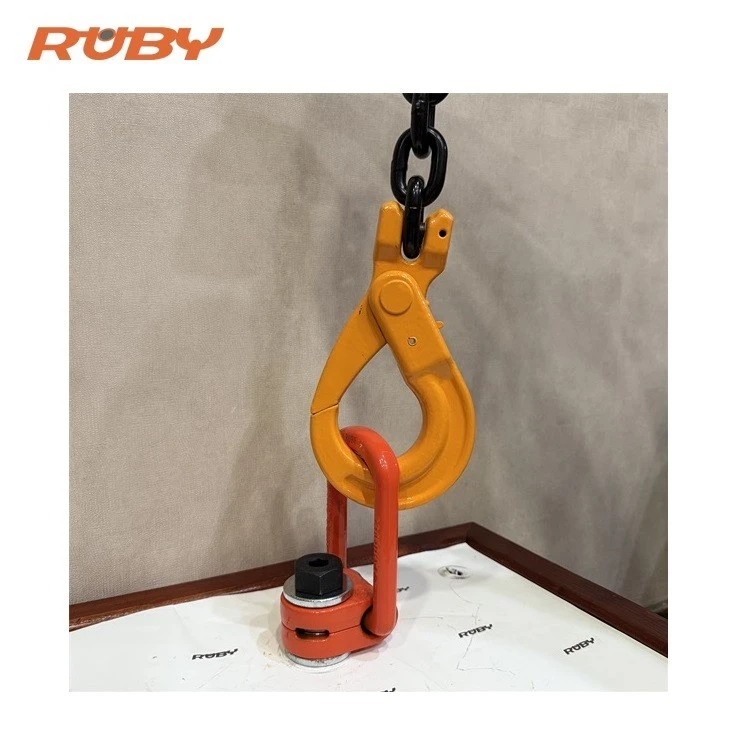

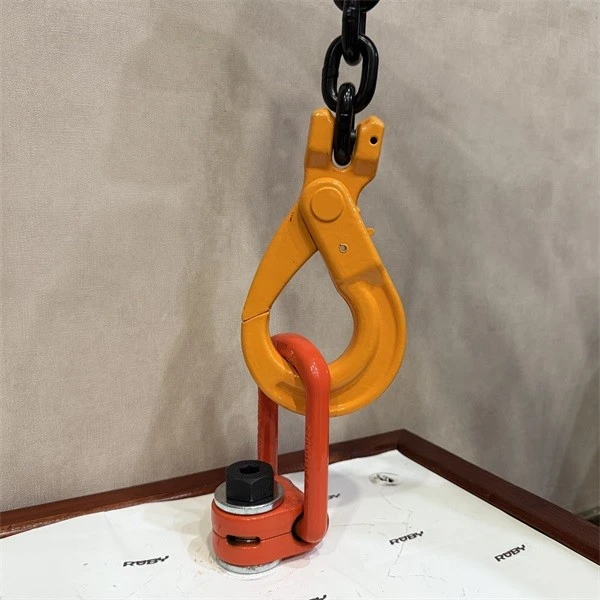

It can lift in multiple directions but it is not suitable for turning under load.

Specification

Product code	WLL	THREAD			Dimensions									TORQUE	N.W.
		M	E	PITCH	A	B	C	D	F	G	H	S	SW		kg
	T	mm	mm	mm										Nm
RP001-M8	0.3	M8	11	1.25	34	37	42	14	98	57	42	6	13	40	0.5
RP001-M10	0.63	M10	16	1.5	34	37	44	14	98	57	40	6	16	40	0.5
RP001-M12	1	M12	18	1.75	34	37	45	14	98	57	39	8	18	40	0.5
RP001-M14	1.2	M14	21	2	34	37	48	14	98	57	36	10	24	100	0.5
RP001-M16	1.5	M16	24	2	34	37	48	14	98	57	36	10	24	130	0.5
RP001-M18	2	M18	26	2.5	50	54	58	16	143	82	68	12	30	170	1.5
RP001-M20	2.5	M20	30	2.5	50	54	58	16	143	82	68	12	30	170	1.5
RP001-M24	4	M24	36	3	50	54	61	16	143	82	65	14	36	280	1.5
RP001-M27	4	M27	38	3	60	65	82	22	170	99	66	17	46	500	3
RP001-M30	5	M30	48	3.5	60	65	82	22	170	99	66	17	46	600	3.5
RP001-M36S	7	M36	54	4	60	65	85	22	170	99	63	22	55	600	3.5
RP001-M36B	8	M36	62	4	77	85	104	27	226	123	95	22	55	600	6
RP001-M42S	10	M42	72	4.5	77	85	106	27	226	123	93	22	65	800	6.5
RP001-M42B	15	M42	63	4.5	95	104	117	36	257	158	104	22	65	800	11
RP001-M48	20	M48	72	5	95	104	120	36	257	158	101	27	75	800	12
RP001-M56	22	M56	84	5.5	95	104	117	36	257	158	104	27	85	900	15
RP001-M64	22.5	M64	100	6	114	104	138	36	266	158	92	32	95	1000	16.3
