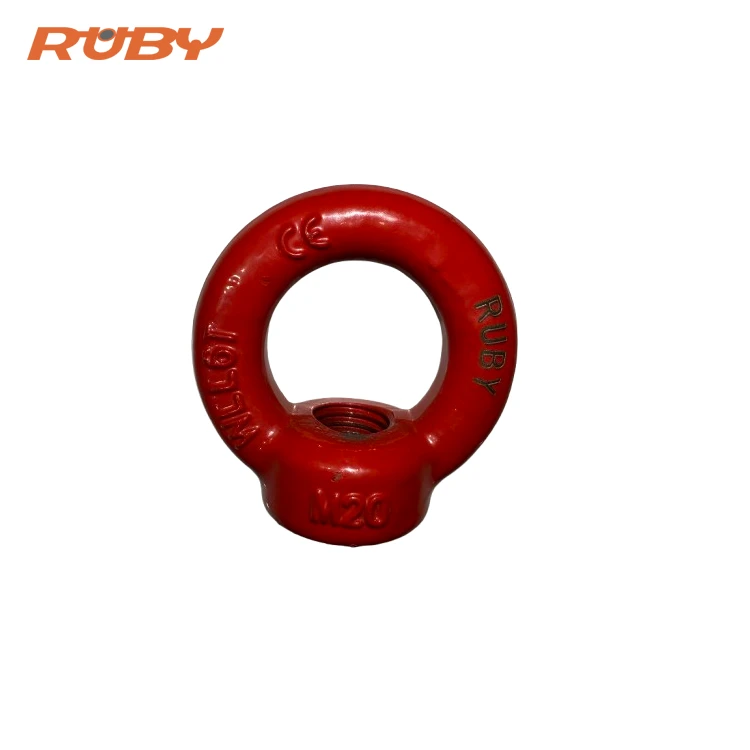

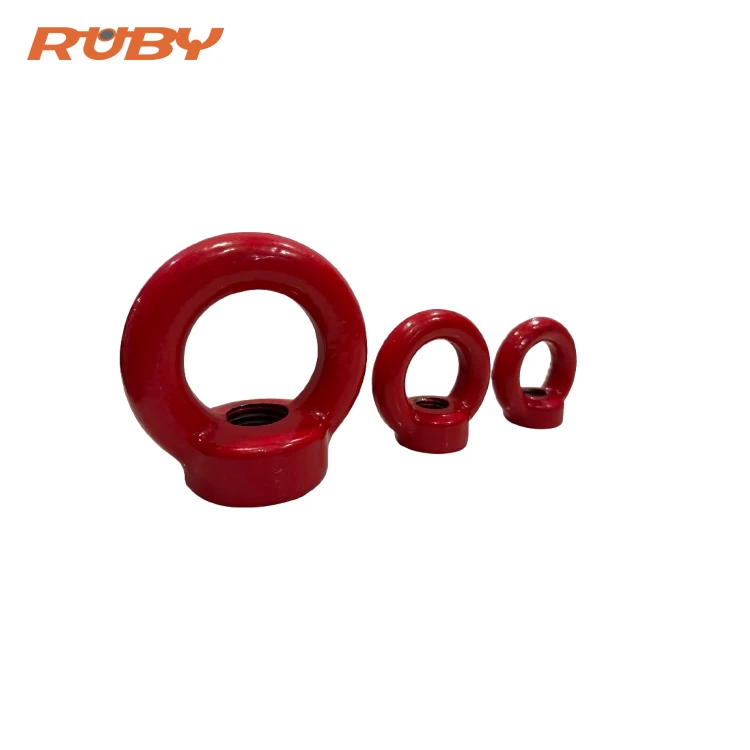

G80 Lifting Eye Nut

G80 lifting eye nuts can be used as lifting points, support points for connecting hooks when stretching load-bearing ropes, etc.

Eye nuts, similar to eye bolts, have a ring-shaped head or eyelet for attaching cables, ropes, or chains to lift or secure objects.

They are threaded and can be screwed onto bolts or other threaded shafts.

The surface is smooth and burr-free, ensuring even stress distribution. The structure is stable, resistant to aging, and has a long service life. The structure is simple and easy to use.

Specification

Product code	WLL	Dimensions					N.W.
	T		A	B	C	L	kg
	0°	90°			mm
RP005-M6	0.4	0.15	20	36	20	36	0.05
RP005-M8	0.8	0.4	20	36	20	36	0.05
RP005-M10	1	0.4	25	45	25	45	0.09
RP005-M12	2	0.75	30	54	30	53	0.16
RP005-M14	3	1	35	63	35	62	0.24
RP005-M16	4	1.5	35	63	35	62	0.24
RP005-M18	5	2	40	72	40	71	0.34
RP005-M20	6	2.3	40	72	40	71	0.36
RP005-M22	7	2.8	45	81	45	81	0.58
RP005-M24	8	3.2	50	90	50	90	0.72
RP005-M27	10	4	50	90	50	90	0.72
RP005-M30	12	4.5	60	108	65	109	1.32
RP005-M33	14	5	60	108	65	109	1.29
RP005-M36	16	7	70	126	75	128	2.1
RP005-M39	20	8	70	126	75	128	2.09
RP005-M42	24	9	80	144	85	147	3.11
RP005-M45	28	10	80	144	85	147	3.05
RP005-M48	32	12	90	166	100	168	5.02
RP005-M52	36	13.5	90	166	100	168	4.94
RP005-M56	40	15	100	184	110	187	6.69
RP005-M64	50	17	110	206	120	208	9.3
