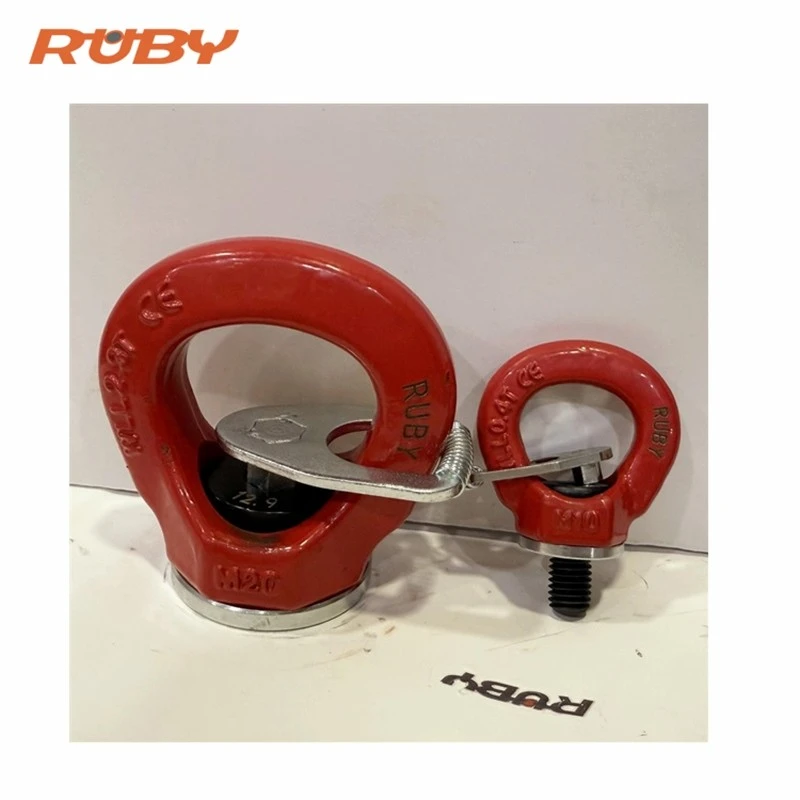

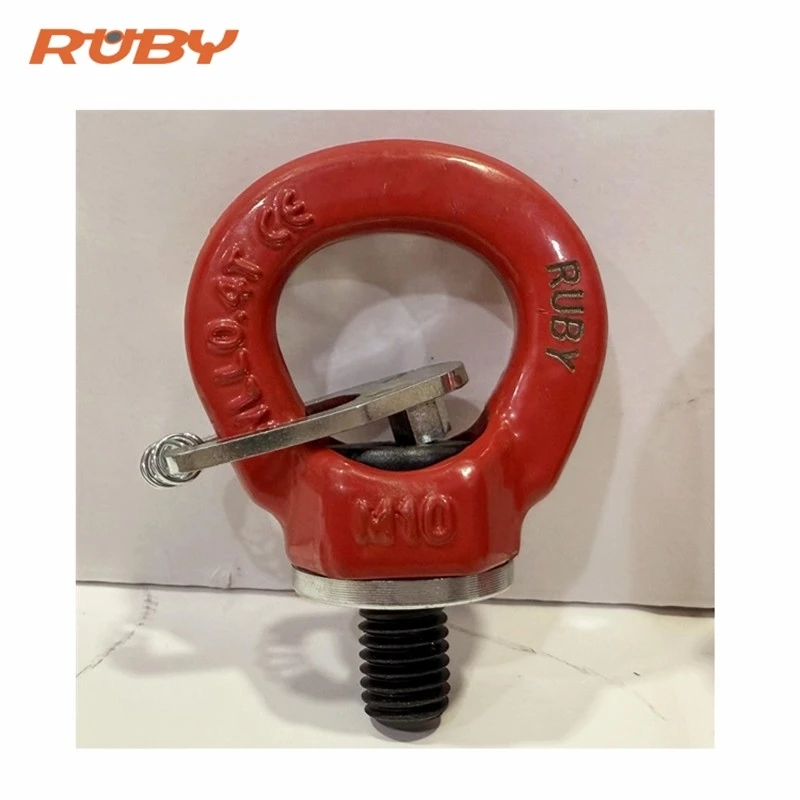

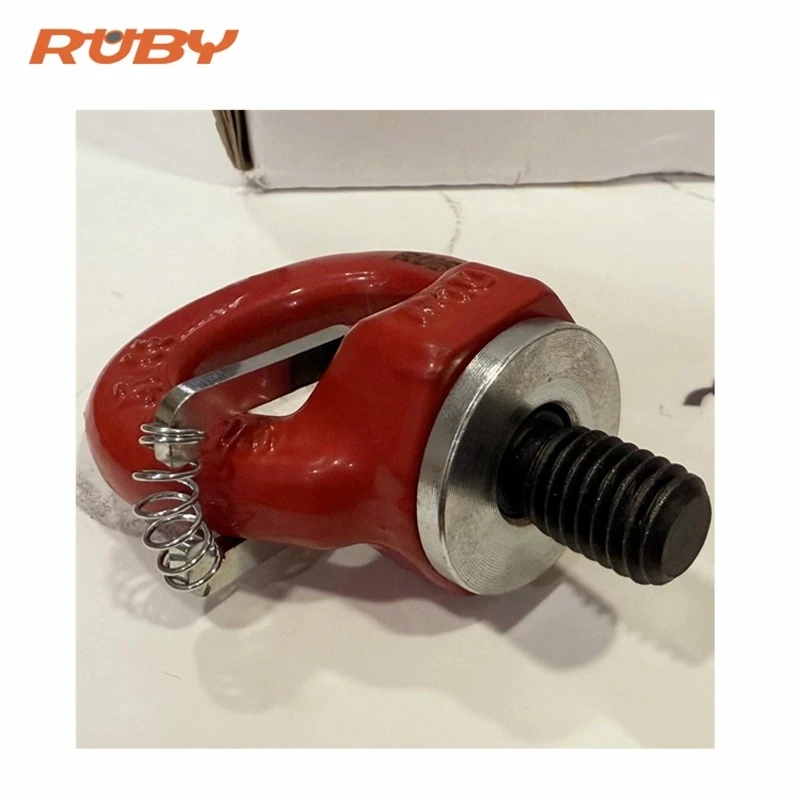

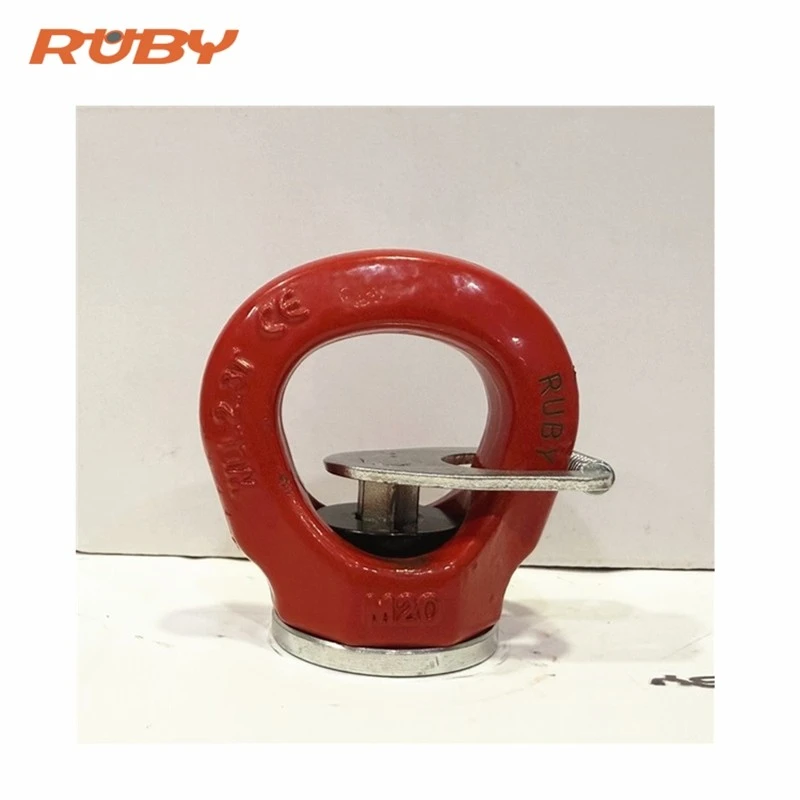

The Key eye point with swivel eye redefines the capabilities of traditional lifting points. Engineered for demanding industrial environments that require reliability and efficiency, the Key eye point has a dynamic 360° rotation feature and an impressive 4.5 times increase in Working Load Limit (WLL) compared to conventional DIN580 lifting points. Its design incorporates a robust forged swivel eye, complemented by a bolt and washer assembly, which ensures secure and versatile lifting operations. The bolt features a hex socket cap grip for easy installation, allowing for swift mounting with standard tools. It includes a supplementary 'quick key' for manual tightening during temporary setups.
Specification
| Product code | WLL | THREAD | Dimensions | TORQUE | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T | M | E | PITCH | A | B | C | D | F | Nm | kg | |
| mm | mm | mm | |||||||||
| RP004-M8 | 0.3 | M8 | 11.5 | 1.25 | 38 | 26 | 45.3 | 25 | 8 | 10 | 0.11 |
| RP004-M10 | 0.4 | M10 | 14 | 1.5 | 38 | 26 | 45.3 | 25 | 8 | 10 | 0.12 |
| RP004-M12 | 0.75 | M12 | 17 | 1.75 | 43.5 | 32 | 54 | 33 | 10 | 15 | 0.2 |
| RP004-M16 | 1.5 | M16 | 24 | 2 | 52 | 37.5 | 63.5 | 36 | 14 | 30 | 0.35 |
| RP004-M20 | 2.3 | M20 | 30 | 2.5 | 63 | 44.5 | 78.5 | 47.5 | 20 | 70 | 0.66 |
| RP004-M24 | 3.2 | M24 | 35.3 | 3 | 74 | 51.5 | 92 | 53 | 20 | 150 | 1.1 |
| RP004-M30 | 4.5 | M30 | 45 | 3.5 | 92 | 65 | 118 | 68 | 24 | 250 | 2.07 |
| RP004-M36 | 7 | M36 | 56.8 | 4 | 105 | 76 | 136 | 82 | 30 | 400 | 4 |
| RP004-M42 | 9 | M42 | 66.5 | 4.5 | 121.5 | 88 | 160 | 92 | 35 | 550 | 5.52 |
| RP004-M48 | 12 | M48 | 75.5 | 5 | 138 | 100 | 180 | 110 | 42 | 550 | 8.86 |
Product Details
Customization
BOLT CUSTOMIZATION
- Bolt surface can be designed by customer's requirement. Most common surfaces are black oxidation and Galvanized.
- Different bolt length are available.
STAMPING CUSTOMIZATION
- Body stamping content and stamping way are optional.
BODY CUSTOMIZATION
- Different body colors are available.
PACKING CUSTOMIZATION
- Single plastic bag or cartons can be specially designed by customer's requirements.
- Like color, logo, etc.
- Can provide design service for customers.
