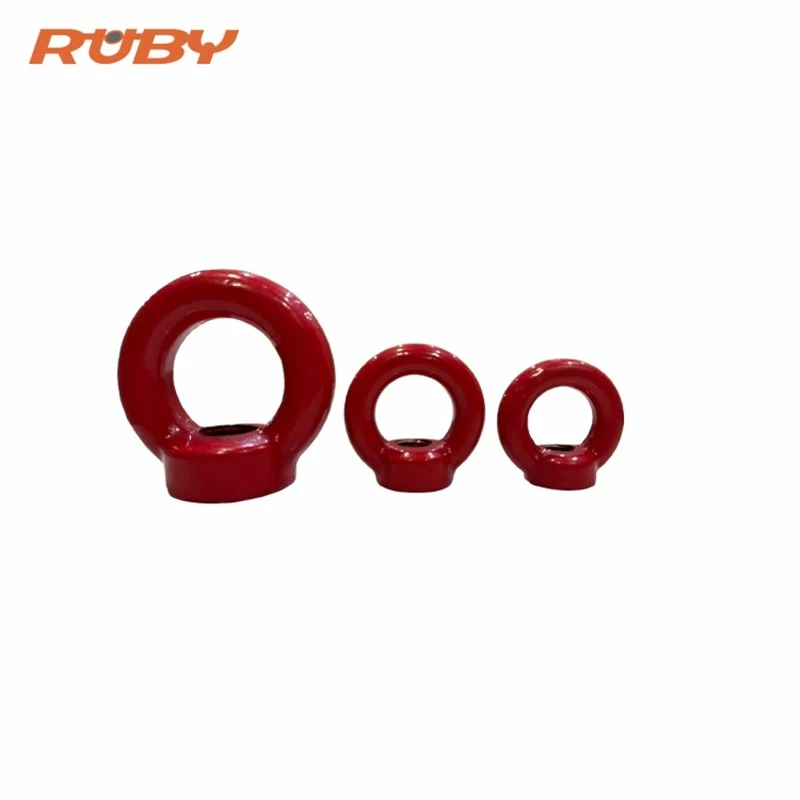

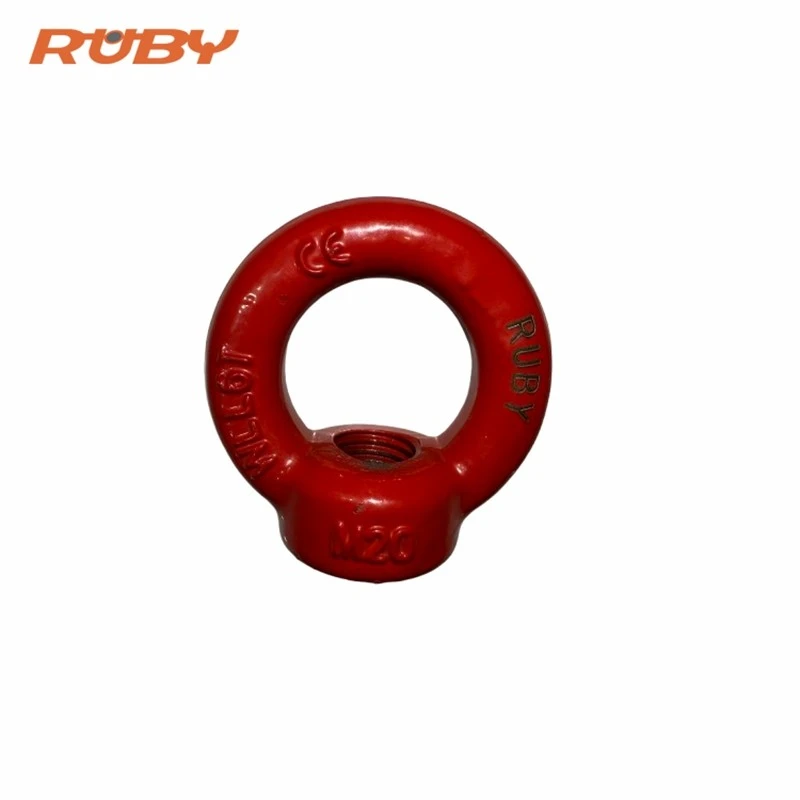

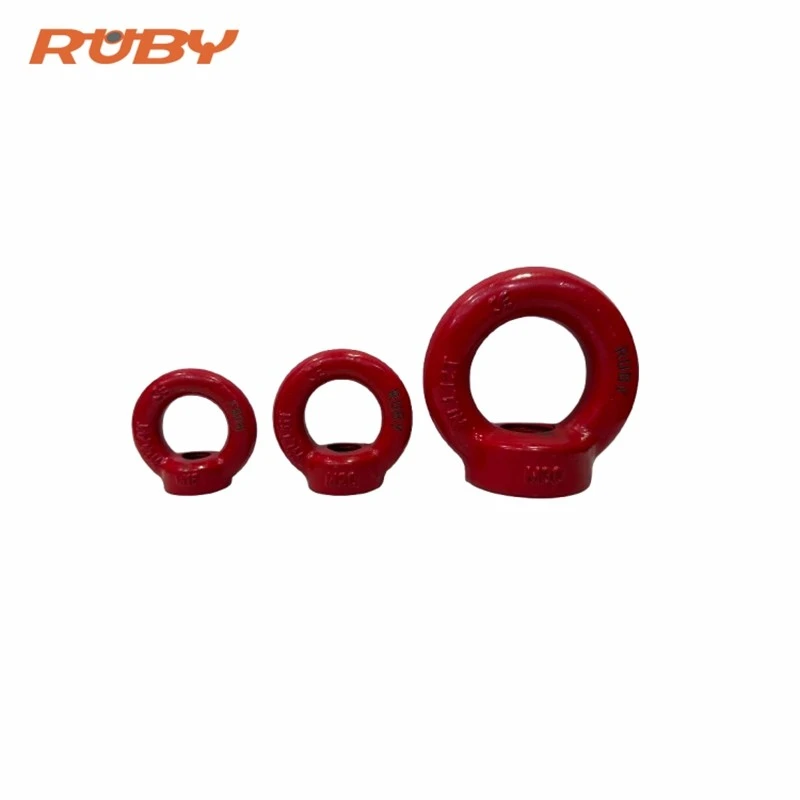

G80 EYE NUT

G80 eye bolts can be used as lifting points and end connections for chains, wire ropes, and other components.

This versatile and durable eye bolt, conforming to the DIN 582 standard shape, is ideal for securing chains or wire ropes to fixed surfaces, providing unparalleled reliability and efficiency.

Specification

Product code	WLL		Dimensions				N.W.
	T		A	B	C	L	kg
	0°	90°			mm
RP005-M6	0.4	0.15	20	36	20	36	0.05
RP005-M8	0.8	0.4	20	36	20	36	0.05
RP005-M10	1	0.4	25	45	25	45	0.09
RP005-M12	2	0.75	30	54	30	53	0.16
RP005-M14	3	1	35	63	35	62	0.24
RP005-M16	4	1.5	35	63	35	62	0.24
RP005-M18	5	2	40	72	40	71	0.34
RP005-M20	6	2.3	40	72	40	71	0.36
RP005-M22	7	2.8	45	81	45	81	0.58
RP005-M24	8	3.2	50	90	50	90	0.72
RP005-M27	10	4	50	90	50	90	0.72
RP005-M30	12	4.5	60	108	65	109	1.32
RP005-M33	14	5	60	108	65	109	1.29
RP005-M36	16	7	70	126	75	128	2.1
RP005-M39	20	8	70	126	75	128	2.09
RP005-M42	24	9	80	144	85	147	3.11
RP005-M45	28	10	80	144	85	147	3.05
RP005-M48	32	12	90	166	100	168	5.02
RP005-M52	36	13.5	90	166	100	168	4.94
RP005-M56	40	15	100	184	110	187	6.69
RP005-M64	50	17	110	206	120	208	9.3
