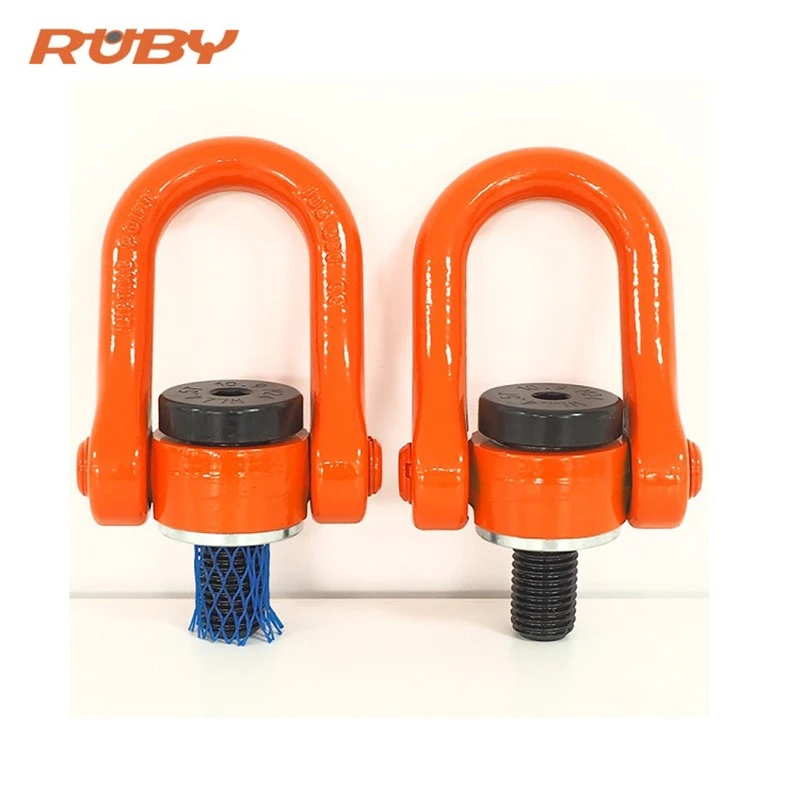

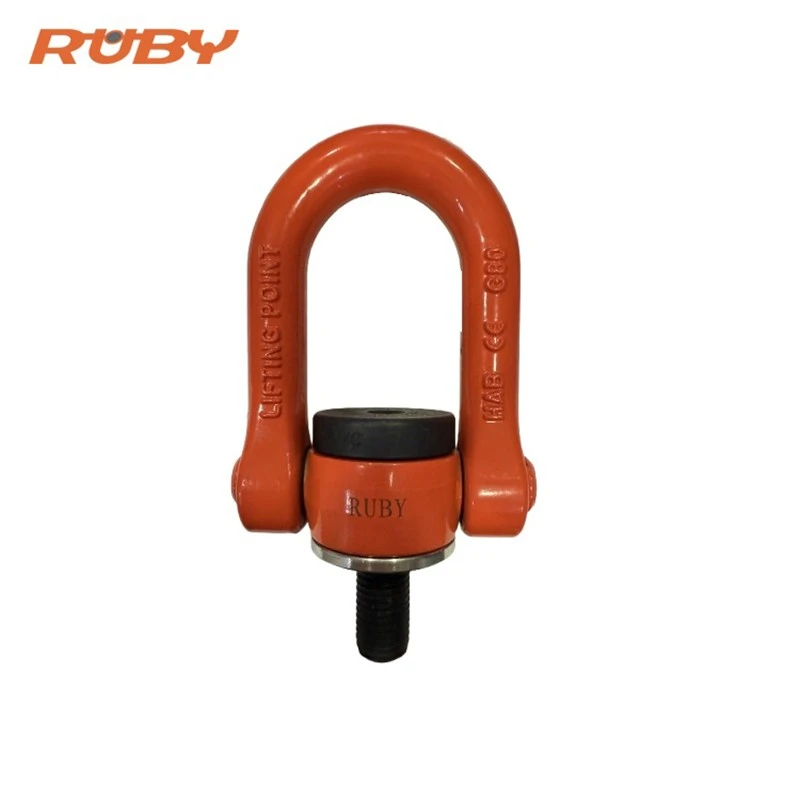

SWIVEL HOIST RING

Swivel hoist ring - sometimes referred to as a swivel eye bolt - is a piece of rigging that screws into an engineered lifting point on a load to connect a sling to the hoist.

Metric Thread

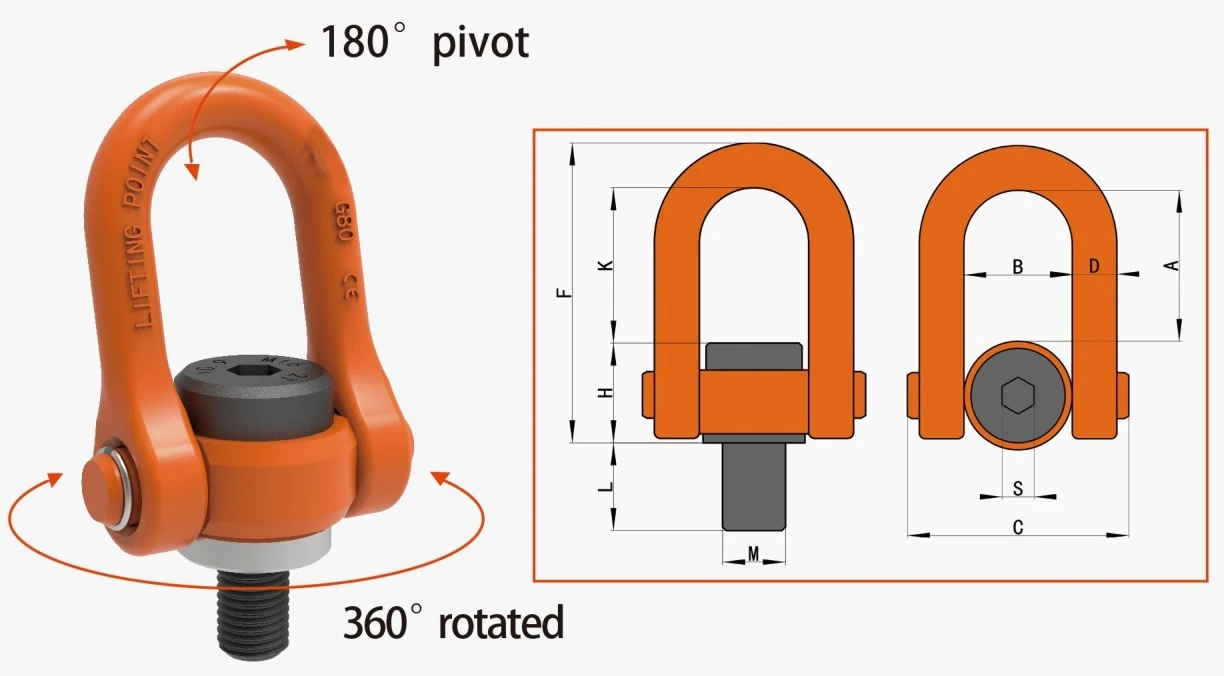

Product code	WLL	METRIC THREAD			DIMENSIONS								TORQUE	N.W.
Product code	WLL	M	L	PITCH	A	B	C	D	F	G	H	S	TORQUE	N.W.
	T	mm	mm	mm	mm								Nm	kg
RP002-M08	0.5	8	12	1.25	50	37	76	14	101	49	38	8	40	0.8
RP002-M10	0.7	10	16	1.5	50	37	76	14	101	49	38	8	40	0.8
RP002-M12	1.0	12	18	1.75	50	37	76	14	101	49	38	8	40	0.8
RP002-M14	1.5	14	21	2	50	37	76	14	101	49	38	8	100	0.8
RP002-M16	2.0	16	24	2	50	37	76	14	101	49	38	8	130	0.8
RP002-M18	2.5	18	40	2.5	74	54	105	20	145	77	48	12	170	1.9
RP002-M20	3.0	20	40	2.5	74	54	105	20	145	77	48	12	170	2
RP002-M22	3.0	22	40	2.5	74	54	105	20	145	77	48	12	170	2.1
RP002-M24	4.5	24	40	3	74	54	105	20	145	77	48	12	280	2.5
RP002-M27	5.0	27	40	3	98	73	146	30	201	103	68	17	500	5.5
RP002-M30	7.3	30	45	3.5	98	73	146	30	201	103	68	17	600	5.5
RP002-M33	8.0	36	50	3.5	98	73	146	30	201	103	68	17	600	5.5
RP002-M36	10	36	54	4	98	73	146	30	201	103	68	17	600	5.5
RP002-M39	10	42	58	4	98	73	146	30	201	103	68	17	800	6
RP002-M42	12.5	42	63	4.5	98	73	146	30	201	103	68	17	800	6
RP002-M48	20	48	72	5	95	104	120	36	257	158	101	27	800	11.5
RP002-M52	20	52	68	5	120	93	182	36	249	125	84	19	900	12
RP002-M56	25	56	78	5.5	120	93	182	36	249	125	84	19	900	12
RP002-M64	33	64	100	6	185	144	280	58	395	195	136	36	1000	42
