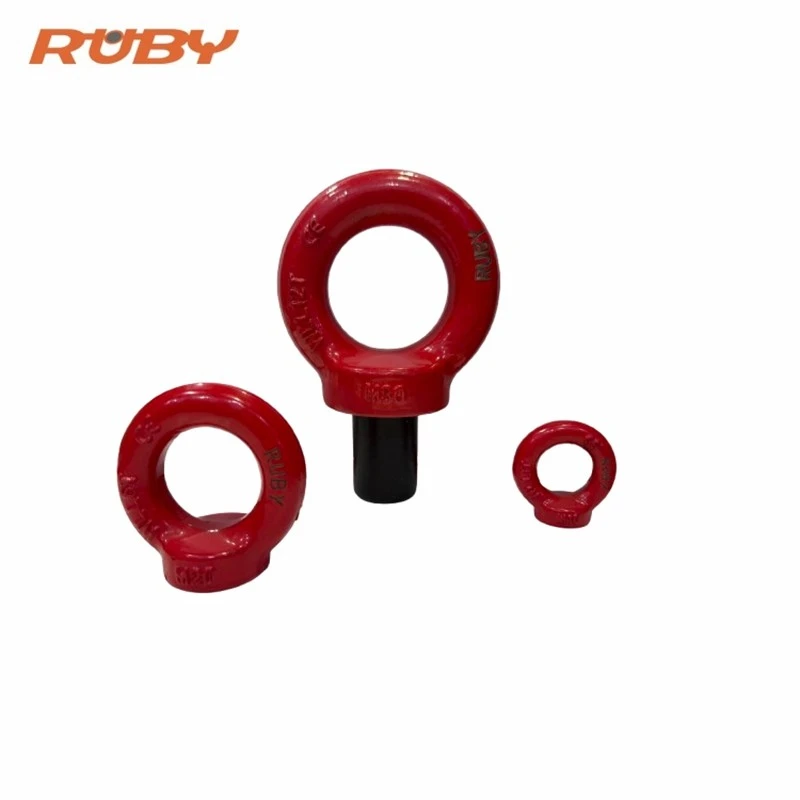

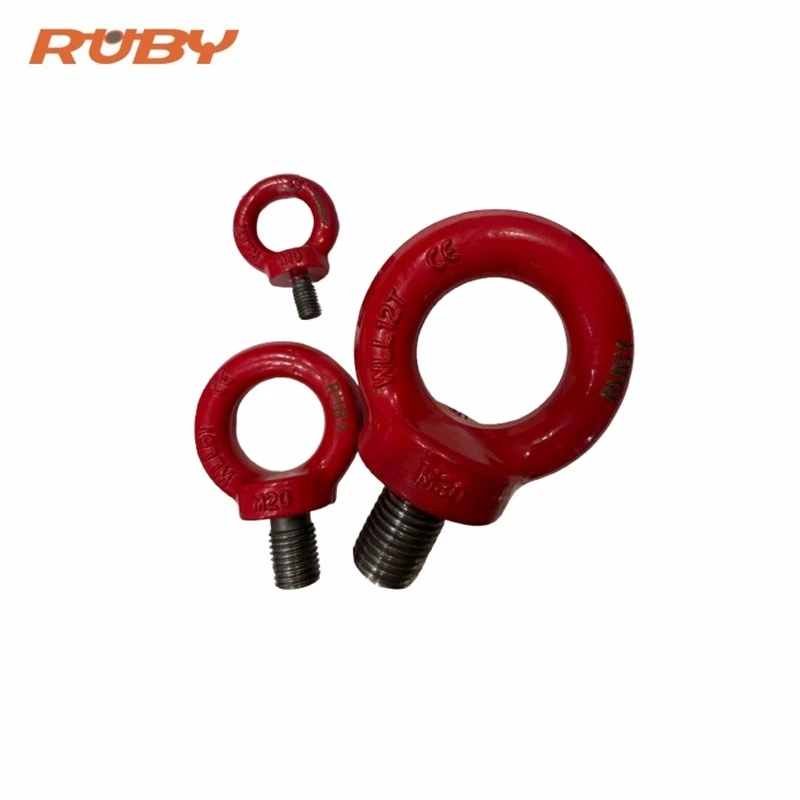

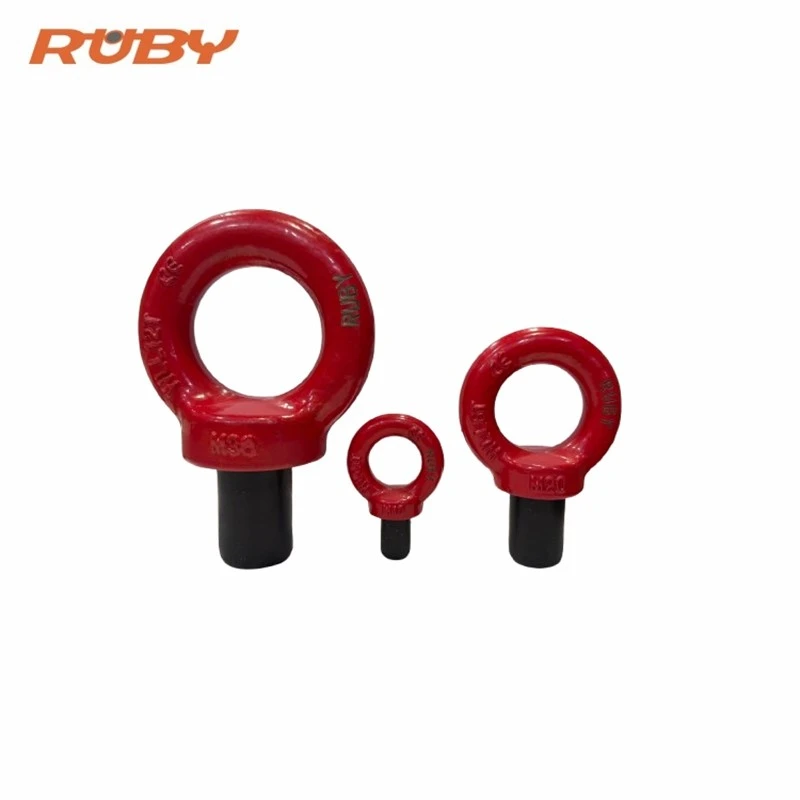

G80 EYE BOLT

G80 eye bolts can be used as lifting points and end connections for chains, wire ropes, and other components.

This versatile and durable lifting eye bolt, conforming to the DIN 580 standard shape, is ideal for securing chains or wire ropes to heavy surfaces, providing unparalleled reliability and efficiency.

Specification

Product code	WLL	Dimensions						N.W.
	T		E	A	B	C	L	kg
	0°	90°				mm
RP005-M6	0.4	0.15	13	16	28	17	42	0.05
RP005-M8	0.8	0.4	15	20	36	20	51	0.06
RP005-M10	1	0.4	18	25	45	25	63	0.11
RP005-M12	2	0.75	22	30	54	30	75	0.18
RP005-M14	3	1	28	35	63	35	91	0.28
RP005-M16	4	1.5	28	35	63	35	91	0.29
RP005-M18	5	2	30	40	72	40	101	0.42
RP005-M20	6	2.3	30	40	72	40	101	0.45
RP005-M22	7	2.8	34	45	81	45	115	0.67
RP005-M24	8	3.2	38	50	90	50	128	0.87
RP005-M27	10	4	38	60	90	50	128	0.88
RP005-M30	12	4.5	45	60	108	60	154	1.66
RP005-M33	14	5	45	60	108	60	154	1.72
RP005-M36	16	7	55	70	126	70	183	2.65
RP005-M39	20	8	55	70	126	70	183	2.8
RP005-M42	24	9	65	80	144	85	212	4.03
RP005-M45	28	10	65	80	144	85	212	4.25
RP005-M48	32	12	70	90	166	100	238	6.38
RP005-M52	36	13.5	70	90	166	100	238	6.6
RP005-M56	40	15	80	100	184	110	267	8.8
RP005-M64	50	17	90	110	206	120	293	12.4
