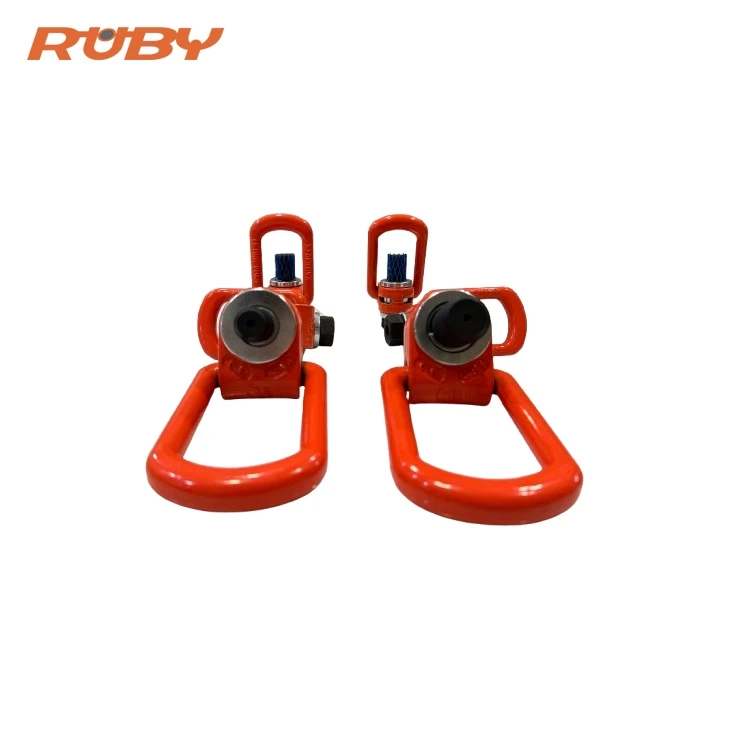

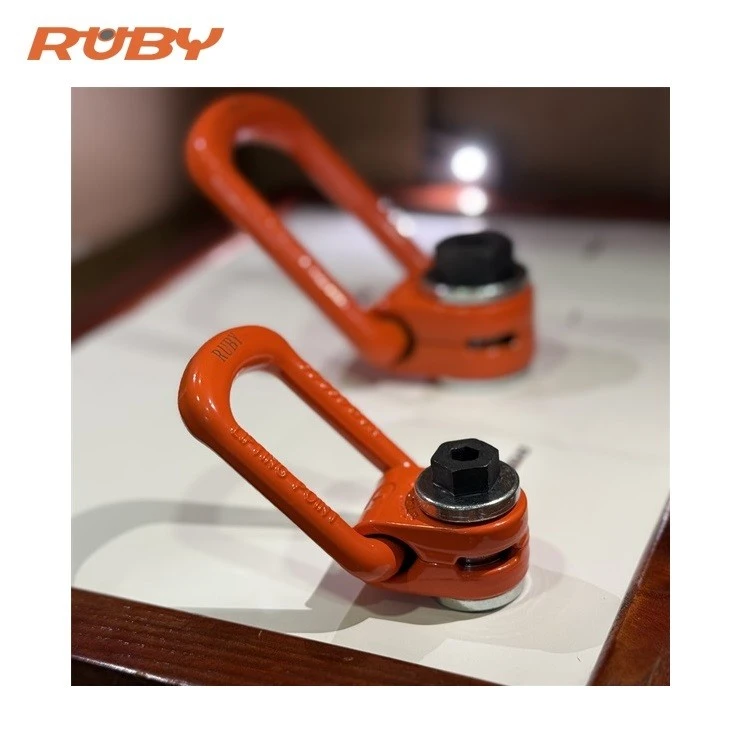

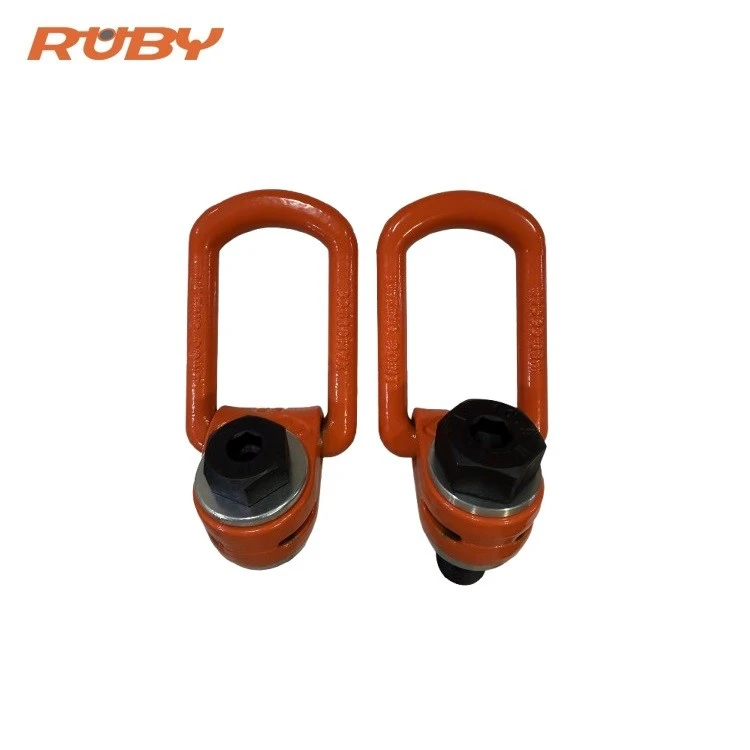

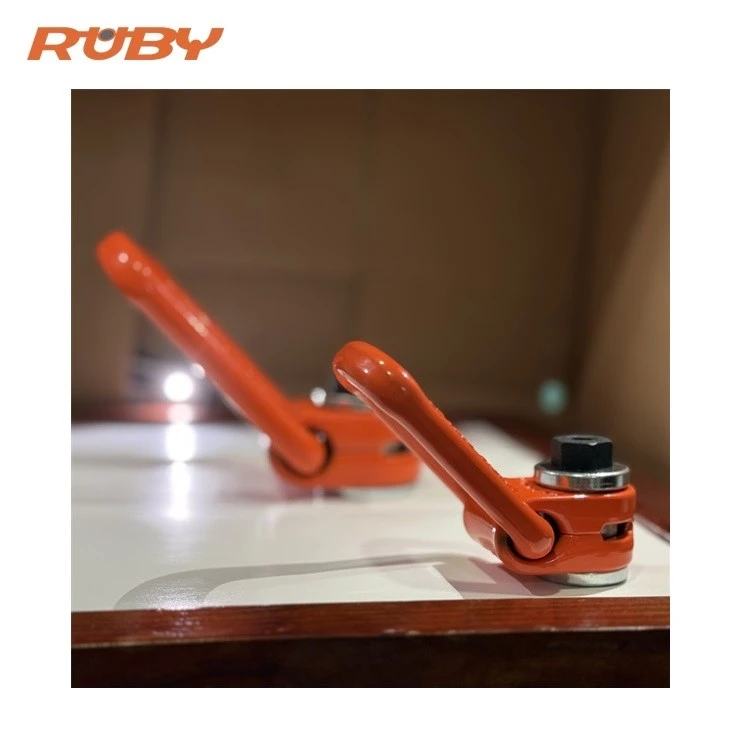

The RUBY Lifting Points are an essential item for any lifting kit.
These highly rated versatile lifting points offer exceptional performance with 360° rotation and 180° force range to ensure your loads are safe and secure.


Specification
| Product code | WLL | THREAD | Dimensions | TORQUE | N.W. | ||||||||||
|
M |
E |
PITCH |
A |
B |
C |
D |
F |
G |
H |
S |
SW |
||||
| T | mm | mm | mm | Nm | kg | ||||||||||
|
RP001-M8 |
0.3 |
M8 |
11 |
1.25 |
34 |
37 |
42 |
14 |
98 |
57 |
42 |
6 |
13 |
40 |
0.5 |
|
RP001-M10 |
0.63 |
M10 |
16 |
1.5 |
34 |
37 |
44 |
14 |
98 |
57 |
40 |
6 |
16 |
40 |
0.5 |
|
RP001-M12 |
1 |
M12 |
18 |
1.75 |
34 |
37 |
45 |
14 |
98 |
57 |
39 |
8 |
18 |
40 |
0.5 |
|
RP001-M14 |
1.2 |
M14 |
21 |
2 |
34 |
37 |
48 |
14 |
98 |
57 |
36 |
10 |
24 |
100 |
0.5 |
|
RP001-M16 |
1.5 |
M16 |
24 |
2 |
34 |
37 |
48 |
14 |
98 |
57 |
36 |
10 |
24 |
130 |
0.5 |
|
RP001-M18 |
2 |
M18 |
26 |
2.5 |
50 |
54 |
58 |
16 |
143 |
82 |
68 |
12 |
30 |
170 |
1.5 |
|
RP001-M20 |
2.5 |
M20 |
30 |
2.5 |
50 |
54 |
58 |
16 |
143 |
82 |
68 |
12 |
30 |
170 |
1.5 |
|
RP001-M24 |
4 |
M24 |
36 |
3 |
50 |
54 |
61 |
16 |
143 |
82 |
65 |
14 |
36 |
280 |
1.5 |
|
RP001-M27 |
4 |
M27 |
38 |
3 |
60 |
65 |
82 |
22 |
170 |
99 |
66 |
17 |
46 |
500 |
3 |
|
RP001-M30 |
5 |
M30 |
48 |
3.5 |
60 |
65 |
82 |
22 |
170 |
99 |
66 |
17 |
46 |
600 |
3.5 |
|
RP001-M36S |
7 |
M36 |
54 |
4 |
60 |
65 |
85 |
22 |
170 |
99 |
63 |
22 |
55 |
600 |
3.5 |
|
RP001-M36B |
8 |
M36 |
62 |
4 |
77 |
85 |
104 |
27 |
226 |
123 |
95 |
22 |
55 |
600 |
6 |
|
RP001-M42S |
10 |
M42 |
72 |
4.5 |
77 |
85 |
106 |
27 |
226 |
123 |
93 |
22 |
65 |
800 |
6.5 |
|
RP001-M42B |
15 |
M42 |
63 |
4.5 |
95 |
104 |
117 |
36 |
257 |
158 |
104 |
22 |
65 |
800 |
11 |
|
RP001-M48 |
20 |
M48 |
72 |
5 |
95 |
104 |
120 |
36 |
257 |
158 |
101 |
27 |
75 |
800 |
12 |
|
RP001-M56 |
22 |
M56 |
84 |
5.5 |
95 |
104 |
117 |
36 |
257 |
158 |
104 |
27 |
85 |
900 |
15 |
|
RP001-M64 |
22.5 |
M64 |
100 |
6 |
114 |
104 |
138 |
36 |
266 |
158 |
92 |
32 |
95 |
1000 |
16.3 |


Product Details
- 360° rotation with a 90° pivot function.
- 4:1 safety factor (The working capacity is different based on different force direction, but it can sure of the 4:1 safety factor)
- Complete thread size ( threads can also be customized according to customer special requirements)
- Alloy steel material, electrostatic spraying
- Easy installation




Customization

BOLT CUSTOMIZATION
- Bolt surface can be designed by customer's requirement. Most common surfaces are black oxidation and Galvanized.
- Different bolt length are available.

STAMPING CUSTOMIZATION
- Body stamping content and stamping way are optional.

BODY CUSTOMIZATION
- Different body colors are available.

PACKING CUSTOMIZATION
- Single plastic bag or cartons can be specially designed by customer's requirements.
- Like color, logo, etc.
- Can provide design service for customers.

Applications
