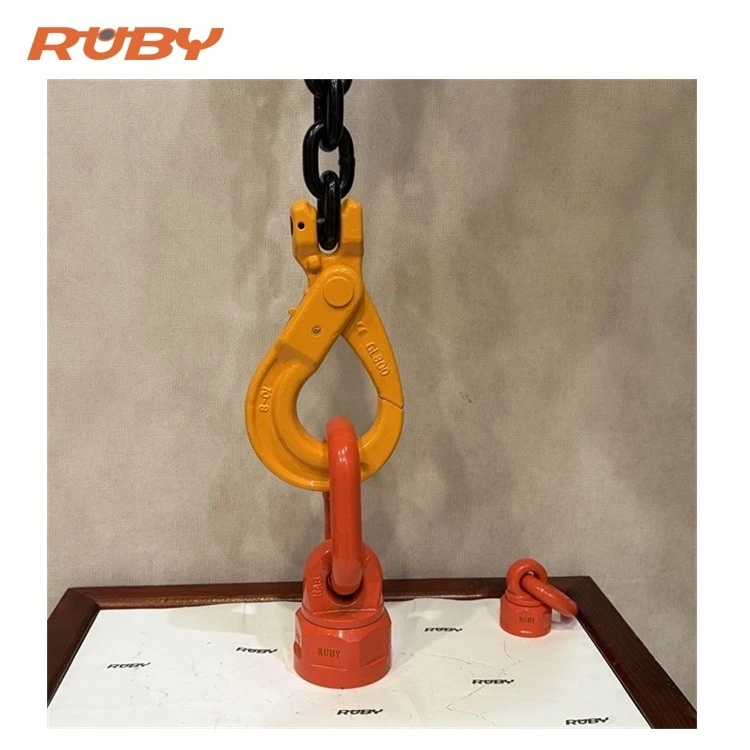

Grade 80 Swivel Rotating Eye Bolt with Ring

360°rotation and 230°force range, built-in ball structure, uniform force distribution, smooth rotation.

These swivel eye bolt with rings feature an all-around rotating design, allowing lifting from different angles while maintaining a high working load limit (WLL).

It is designed to rotate safely under load and is suitable for lifting and rigging operations in industrial applications.

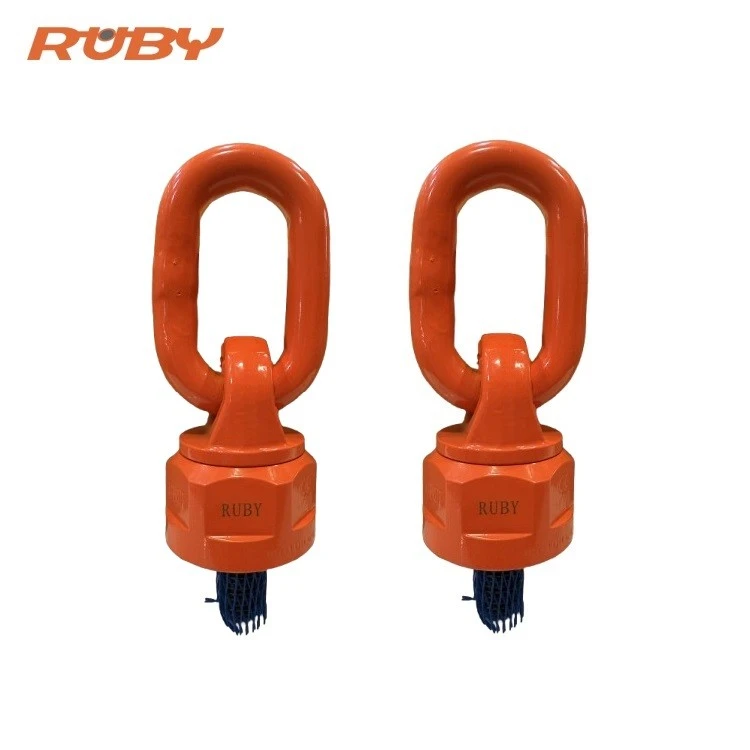

Grade 80 Swivel Lifting Eye Bolt With Ring

Specification

Product code	WLL	THREAD			Dimensions							TORQUE	N.W.
	T	M	E	PITCH	A	B	C	D	F	G	K	Nm	kg
		mm	mm				mm
RP003-M8	0.4	M8	12	1.25	30	43.5	54	12	97.5	40	37	40	0.44
RP003-M10	0.6	M10	19	1.5	30	43.5	54	12	97.5	40	37	40	0.45
RP003-M12	0.7	M12	19	1.75	30	43.5	54	12	97.5	40	37	40	0.45
RP003-M14	1.25	M14	31.8	2	30	43.5	54	12	97.5	40	37	100	0.45
RP003-M16	1.5	M16	31.8	2	30	43.5	54	12	97.5	40	37	130	0.48
RP003-M18	1.9	M18	30	2.5	34	54.5	78	16	132.5	59	54.5	170	1.35
RP003-M20	2	M20	30	2.5	34	54.5	78	16	132.5	59	54.5	170	1.4
RP003-M22	2	M22	30	2.5	34	54.5	78	16	132.5	59	54.5	170	1.4
RP003-M24	3.15	M24	30	3	34	54.5	78	16	132.5	59	54.5	280	1.4
RP003-M27	4	M27	38.1	3	40	67	93	20	160	70	64.5	500	2.35
RP003-M30	5	M30	35	3.5	40	67	93	20	160	70	64.5	600	2.5
RP003-M33	7.5	M33	50	3.5	51	95	111	22	206	79	74	600	3.8
RP003-M36	10	M36	54	4	51	95	111	22	206	79	74	600	3.9
RP003-M39	10	M39	58	4	51	95	111	22	206	79	74	800	4
RP003-M42	13	M42	63	4.5	65	108	122.5	26	230.5	93	85	800	5.9
RP003-M45	13	M45	68	4.5	65	108	122.5	26	230.5	93	85	800	6
RP003-M48	14	M48	68	5	65	108	122.5	26	230.5	93	85	800	6.15
RP003-M56	20	M56	84	5.5	70	120	158	32	278	105	95	900	10
