Grade 80 Heavy Duty Alloy Steel Key Eye Point Lifting Point

Grade 80 Heavy Duty Alloy Steel Key Eye Point Lifting Point

The lifting eye rotates through 360°adjustable in the direction of the load to avoid traditional eye bolt bending.
Key eye points offer lifting solutions in manufacturing, construction,transportation and so on. It provides a secure connection for hooks, slings and shackles during controlled vertical lifting operations.
Send Inquiry
Description
Grade 80 Heavy Duty Alloy Steel Key Eye Point Lifting Point
  • The lifting eye rotates through 360°adjustable in the direction of the load to avoid traditional eye bolt bending.
  • Key eye points offer lifting solutions in manufacturing, construction,transportation and so on. It provides a secure connection for hooks, slings and shackles during controlled vertical lifting operations.
  • Key eye points are lightweight, high-performance, and easy to use. Assembly is quick and simple, requiring only tapping.

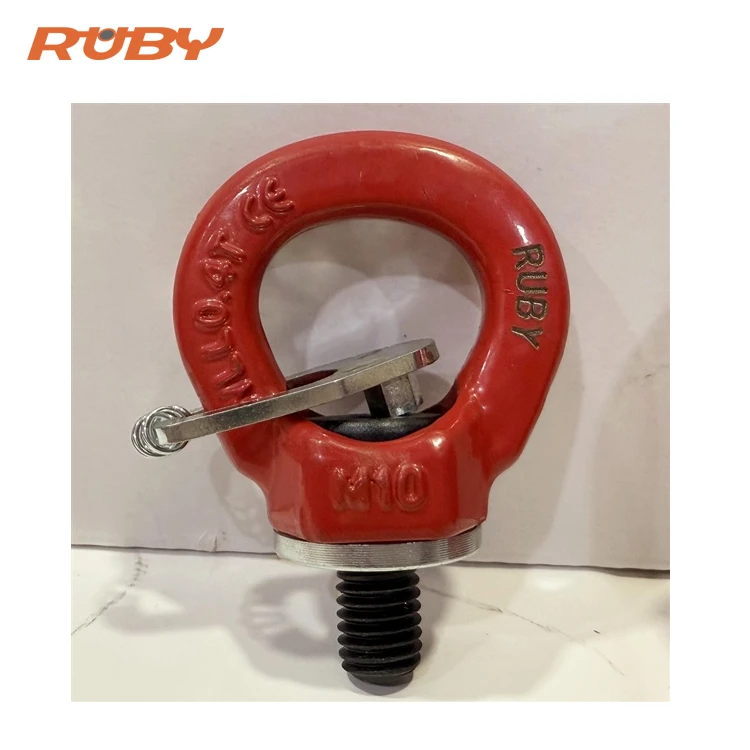

Key Eye Points

Multi-Directional Eyebolt001


Specification





Product code WLL THREAD Dimensions TORQUE N.W.
  T M E PITCH A B C D F Nm kg
    mm mm       mm
RP004-M8 0.3 M8 11.5 1.25 38 26 45.3 25 8 10 0.11
RP004-M10 0.4 M10 14 1.5 38 26 45.3 25 8 10 0.12
RP004-M12 0.75 M12 17 1.75 43.5 32 54 33 10 15 0.2
RP004-M16 1.5 M16 24 2 52 37.5 63.5 36 14 30 0.35
RP004-M20 2.3 M20 30 2.5 63 44.5 78.5 47.5 20 70 0.66
RP004-M24 3.2 M24 35.3 3 74 51.5 92 53 20 150 1.1
RP004-M30 4.5 M30 45 3.5 92 65 118 68 24 250 2.07
RP004-M36 7 M36 56.8 4 105 76 136 82 30 400 4
RP004-M42 9 M42 66.5 4.5 121.5 88 160 92 35 550 5.52
RP004-M48 12 M48 75.5 5 138 100 180 110 42 550 8.86
swivel key eye point
key eye point specification

Product Details





KEY EYE POINT 2
KEY EYE POINT 1
Multi-Directional Eyebolt
Multi-Directional Eyebolt 2



Customization





A lifting point bolt001

BOLT CUSTOMIZATION

  • Bolt surface can be designed by customer's requirement. Most common surfaces are black oxidation and Galvanized.
  • Different bolt length are available.
A lifting point marking

STAMPING CUSTOMIZATION

  • Body stamping content and stamping way are optional.
A lifting point color

BODY CUSTOMIZATION

  • Different body colors are available.
A lifting point packing

PACKING CUSTOMIZATION

  • Single plastic bag or cartons can be specially designed by customer's requirements.
  • Like color, logo, etc.
  • Can provide design service for customers.

lifting points



Applications





rotating lifting point application
